Veracity PH Battery Saver

Veracity PH – Battery Optimization Guide

Follow these settings to maximize battery life and achieve up to ~40 hours of runtime. Average runtime is 10-40 hours dependent on illumination timeout settings, and illumination intensity.

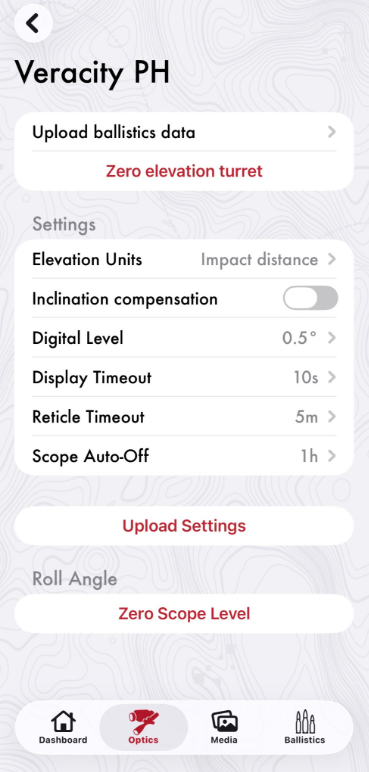

Step 1: Access Settings

From the Optics tab in Burris Connect, open Settings.

• Inclination Compensation: OFF
• Digital Level: 0.5° (or disable if not needed)
• Display Timeout: 10s
• Reticle Timeout: 5m
• Scope Auto-Off: 1h

Important: Select Upload Settings after making changes to apply them to the scope.

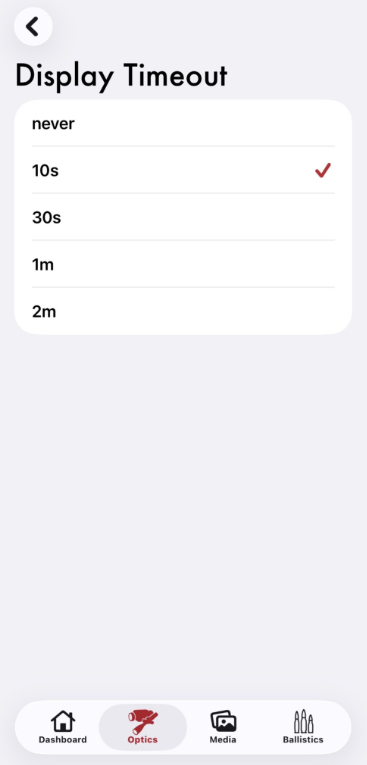

Step 2: Set Display Timeout

Open Display Timeout and select:

10 Seconds

The display is one of the largest sources of battery drain. Setting a short timeout ensures the display powers down quickly after use.

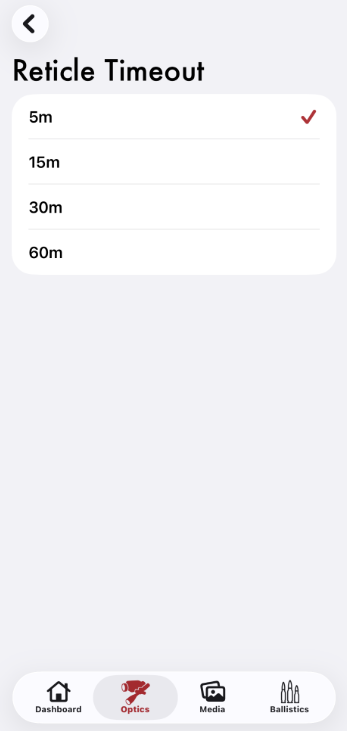

Step 3: Set Reticle Timeout

Open Reticle Timeout and select:

5 Minutes

This provides enough active time for normal shooting while preventing unnecessary battery drain during idle periods.

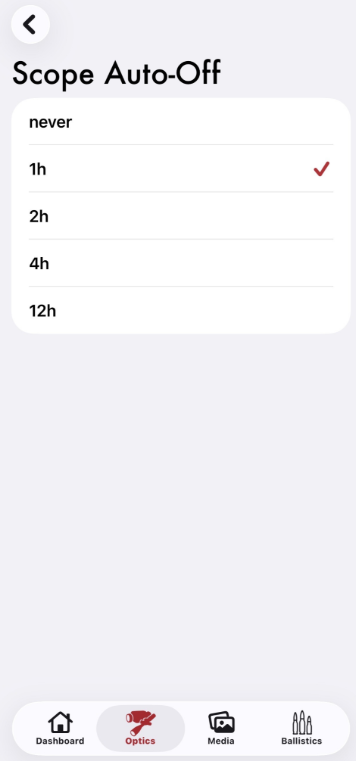

Step 4: Set Scope Auto-Off

Open Scope Auto-Off and select:

1 Hour

This setting helps conserve battery life by automatically powering the scope down after a period of inactivity.

Turning the elevation turret will automatically power the scope back on and return it to the last active settings.

Battery Best Practices

Do	Do Not
Install a fresh set of batteries before each hunt or shooting event	Do not store batteries in the scope during long-term storage
Check battery expiration dates before use	Do not use old or previously stored batteries
Use high-quality, name-brand batteries	Do not assume unused batteries are still fresh

Key Takeaways

• Display Timeout: 10 seconds
• Reticle Timeout: 5 minutes
• Auto-Off Timeout: 1 hour
• Disable unnecessary features when possible
• Always use fresh, non-expired batteries

These settings reduce power consumption and help achieve up to approximately 40 hours of battery life under normal operating conditions.
