Riflescope turrets move the internal erector tube assembly to shift point of aim. When elevation or windage adjustments are set at (or very near) the mechanical limits, the internal system can be pushed outside its most stable operating range.
This can lead to one or more symptoms:
- Stiff or binding magnification (zoom) ring
- Reduced optical clarity (especially near the edges, or at certain magnifications)
- Inconsistent zero retention when left pinned at maximum adjustment
- Turrets tracking at an angle.
Example of Scope Centered In Adjustment Travel.
Example of Maxed Out Windage.

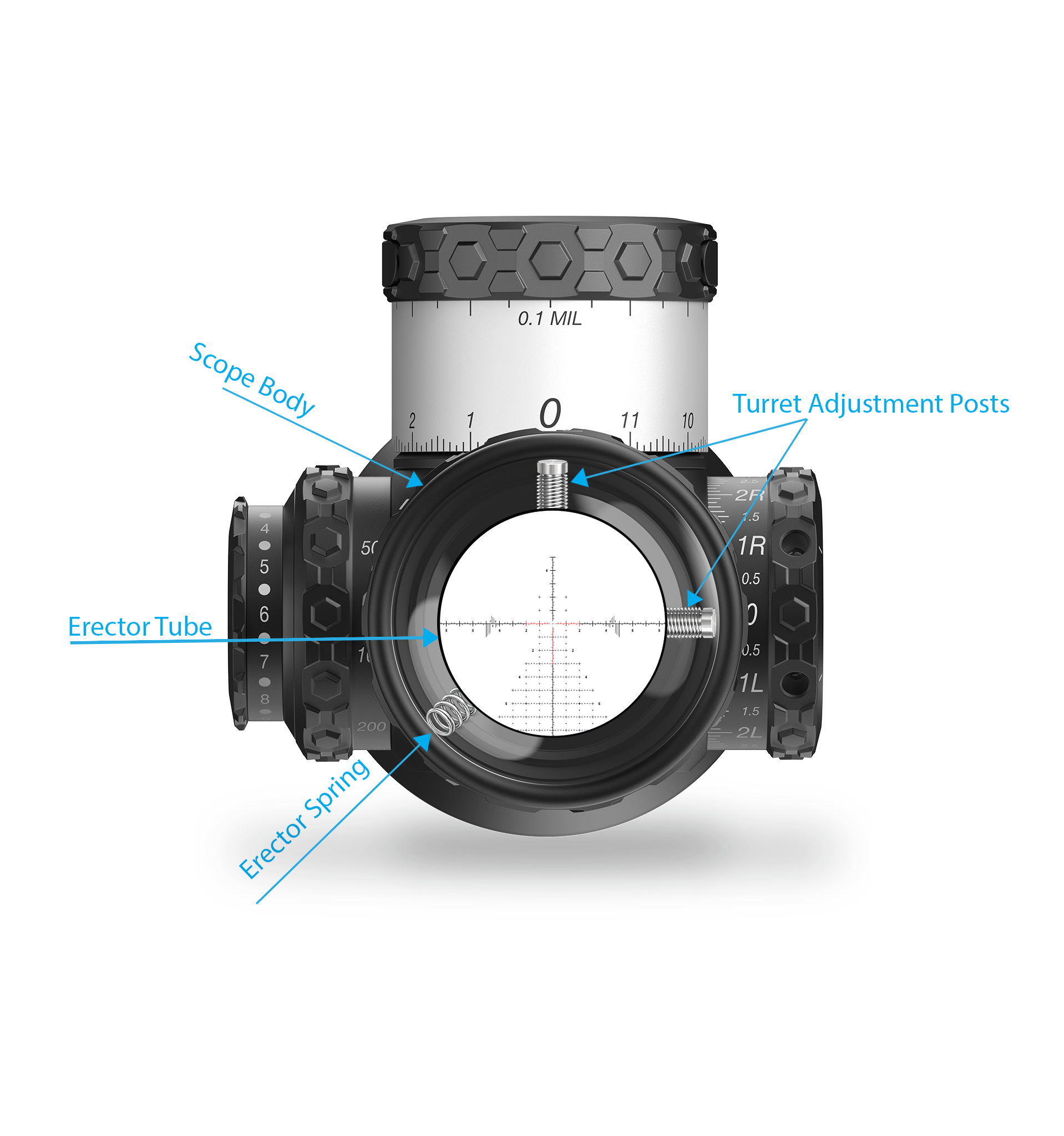

Inside the scope, the erector tube is supported and controlled by a balance of mechanical interfaces and spring tension. Near the center of adjustment, the erector tube remains well-supported and aligned. Near the extremes, the erector tube can be forced hard against internal surfaces, increasing friction and reducing alignment.
What you may notice:
- Zoom ring becomes stiff or difficult to turn due to binding of other internal parts.
- Magnification movement feels uneven or “gritty”
- Binding may be worse at certain magnification points
Why it happens: When turrets are maxed out, the erector tube can be pushed off-axis and create additional mechanical load. The magnification system relies on internal cams and moving elements that are designed to operate with proper alignment. Severe off-axis positioning can increase friction and cause the zoom system to feel tight or bind.
What you may notice:
- Image appears less sharp than expected due to the angle of the internal tube in relationship to the eyepiece lens system, and the objective lens pack.
- Reduced edge clarity or increased distortion
- Clarity changes at different magnifications
Why it happens: Scopes are optically optimized around the center of adjustment. When the erector tube is driven far off-axis, the optical path is no longer operating in the most ideal alignment. This can reduce perceived sharpness and overall optical performance.
What you may notice:
- Point of impact shifts between shots
- Inconsistent return-to-zero
- Zero changes after recoil or handling
Why it happens: At extreme adjustment, the erector tube can rely heavily on spring tension at a less favorable angle. Under recoil, the system can experience tiny internal shifts that may show up as inconsistent point of impact. Keeping turret settings closer to the center of travel improves stability and repeatability.
Think of the scope turrets like the finger-adjustable head on a bolt.
-
Turning the bolt inward increases pressure on the erector spring. At or near maximum inward adjustment, excessive preload can accelerate spring fatigue. In this scenario, the scope may perform normally for years, then suddenly fail to hold zero as the spring loses its ability to maintain consistent tension.
-
Turning the bolt outward reduces pressure on the erector spring. At or near maximum outward adjustment, there may be little or no preload on the spring. Without sufficient tension, the erector assembly cannot consistently return to the same position, and zero-shift issues may appear immediately or develop over time.
⚠️
Important Note:
Both conditions are typically observed when the scope
is operated
at or very near its
maximum adjustment limits.
Running a scope near the center of its adjustment range
helps
maintain proper spring tension, consistent tracking,
and long-term
zero stability.
What you may notice:
- Elevation or windage adjustments no longer track straight
- Point of impact moves diagonally when dialing a single axis
- Tracking appears inconsistent or non-linear during box tests
- Corrections require “chasing” both elevation and windage
Why this happens: When turret adjustments are driven near or against their mechanical limits, the internal erector guide tube can be forced out of its neutral alignment and may begin to roll or ride against the inner diameter of the outer scope tube rather than moving concentrically.
- The guide tube is no longer moving purely in a linear path
- Turret screw force is applied at a slight offset angle
- Adjustment input can translate into combined vertical and lateral movement
Rather than pushing the erector assembly straight up/down or left/right, the system can begin to cam sideways due to friction and uneven contact between internal surfaces. This is a mechanical geometry and alignment effect at extreme adjustment—not a click-value calibration issue.
Why it matters: Once the erector system is no longer centered, the turrets may still “click,” but the movement may no longer be perfectly orthogonal. Tracking accuracy and repeatability can degrade, especially during large adjustment changes.
- Avoid “pinning” the turrets at the hard stop for ongoing use.
- Use the correct base/cant (commonly 20 MOA or 30 MOA when appropriate) to keep the scope closer to optical/mechanical center.
- Re-zero with the scope in a healthier adjustment range if you are near max travel.
- Confirm mounting alignment (rings, base, torque, and rail alignment) to reduce the need for extreme turret correction.
- Back the turrets away from the hard stop (several full turns/clicks if possible).
- Check zoom ring feel again across the full magnification range.
- Re-zero using appropriate mounting/cant so you are not at maximum adjustment.
- Verify mounting (base alignment, ring alignment, torque values per manufacturer).
Recommended Solutions
1. Inspect All Mounting Hardware
- Ensure bases and rings are level and torqued properly.
- Check for damaged or out-of-spec components.
2. Use the Correct Base Cant
- Use 0 MOA rails for standard distances.
- Use 20+ MOA only when long-range elevation is needed.
Burris scopes come factory-centered, but confirming this preserves your available adjustment range.
4. Mechanical Correction Accessories
- Allows micro-adjustment of base elevation.
- Ideal when the rifle requires more upward or downward correction.
- Pos-Align Inserts let you adjust point of impact without stressing the tube.
- The most effective fix for max-out windage problems.
- Six clamping screws and steel bases for extreme hold.
- Self-centering design on Weaver & Picatinny rails.
- Polymer ring inserts, it provides adjustment from 5 to 40 MOA without using windage/elevation knobs.
AR-Signature QD P.E.P.R.™ Mount
- Six clamping screws and steel bases for extreme hold.
- Polymer ring inserts, it provides adjustment from 5 to 40 MOA without using windage/elevation knobs.
