XTR PRO

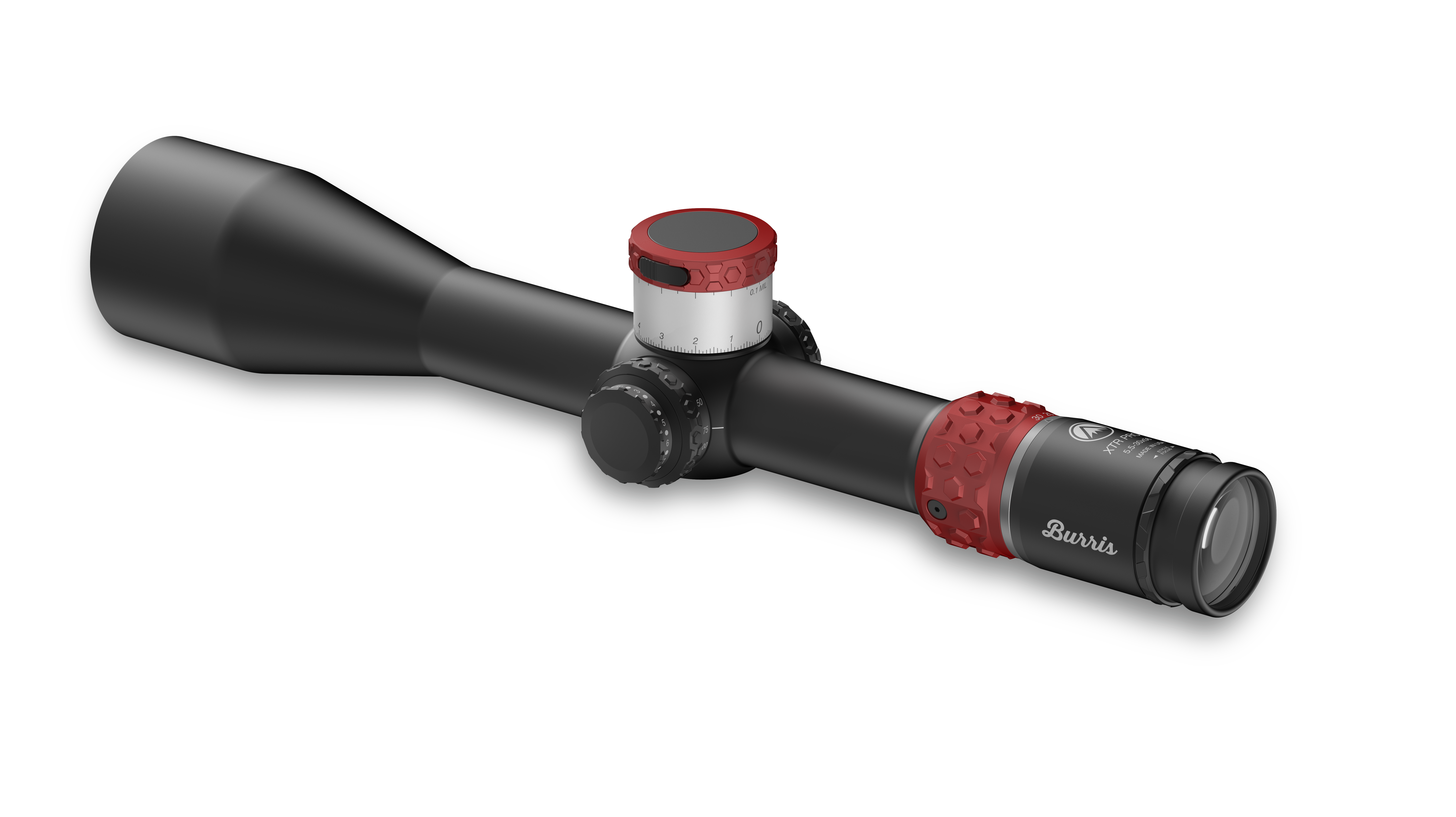

Burris® XTR Pro 5.5–30×56mm

Next-gen PRS/NRL competition scope with Quick-Detach Race Dial, tool-less Zero Click Stop, and FFP tactical reticles. Made in Greeley, Colorado.

Models & Item Numbers • Tech Notes • Setup & Basics • Reticles • Warranty • Resources

---

Models & Item Numbers

All XTR Pro models are FFP, 34 mm tube, 0.1 MIL clicks, and dual-color illumination (11 red + 11 green levels).

Item #	Color	Reticle	Click Value	Elevation (Total)	Windage (Total)	Parallax
202212	Red	SCR 2™ (Illuminated)	0.1 MIL	26 MIL	15 MIL	20 yds–∞
202213	Red	SCR 2™ 1/4 MIL	0.1 MIL	26 MIL	15 MIL	20 yds–∞
202214	Red	Horus TREMOR5™	0.1 MIL	26 MIL	15 MIL	20 yds–∞
202222	Black	SCR 2™ (Illuminated)	0.1 MIL	26 MIL	15 MIL	20 yds–∞
202223	Black	SCR 2™ 1/4 MIL	0.1 MIL	26 MIL	15 MIL	20 yds–∞
202224	Black	Horus TREMOR5™	0.1 MIL	26 MIL	15 MIL	20 yds–∞

Tech Notes (Quick Reference)

Tool-less Zero Click Stop (XT-120): Elevation knob offers ~12 MIL per rotation with multi-turn travel. Factory optical center is set ~20 MOA below center; set the zero stop before dialing down point of impact during initial zero. Cam lever allows quick free-spin and reset.

Windage travel: Single-turn windage knob provides up to ~5.6 MIL left/right. Set zero at the index mark to preserve full travel.

Race Dial (included): Quick-Detach whiteboard-style cap fits clear tape for stage dope; QD standard black cap also included. Swap by squeezing the side release buttons.

Illumination: 11 red + 11 green brightness levels with OFF detents between each level. 3-hour auto timeout. Color toggle: rotate to OFF (between “11” and “S”), hold to “S” ~5 sec to switch colors; release to exit. CR2032 battery.

Specs at a glance: 5.5–30×56, 34 mm tube, FFP, FOV 23–4.2 ft @ 100 yds, eye relief ~3.2–4 in, exit pupil 8.6–1.8 mm, weight ~35.3 oz.

Setup & Basic Operation

Eyepiece/Diopter Focus

1. Unlock the diopter (counter-clockwise). Glance at a plain background and rotate until the reticle is crisp black.
2. Lock the diopter (clockwise). Avoid staring during adjustment to prevent eye auto-focus.

Parallax / Focus

Left-side parallax knob. Set to known distance or rotate until the image is sharp and the reticle no longer appears to shift as you move your eye. Range: 20 yds to infinity.

Zeroing & Zero Click Stop (Elevation)

1. Turn elevation to “0,” open the cam lever (knob free-spins).
2. Turn slightly past the needed value and lift the knob ~1 mm (prevents bottoming on this rising knob).
3. Close the lever, dial down to your zero, reopen lever, push turret down to the stop, set “0,” close lever without rotating the knob.

Windage Zero

Loosen set screws, rotate to align “0” at the index mark, retighten. Keep zero at the index to maintain full left/right travel.

Compatible Reticles

• SCR 2™ (Illuminated): MRAD “tree” with 0.2 MIL graduations for tracking and ranging.
• SCR 2™ 1/4 MIL: Variant with 0.25 MIL graduations for finer staging and holds.
• Horus TREMOR5™: 0.2 MIL Horus grid with time-of-flight wind dots and milling chevrons for fast, multi-target engagement.

Mounting

Requires quality 34 mm rings/bases (e.g., Burris XTR Signature™). Use manufacturer torque specs. Damage from improper mounting is not covered.

Warranty & Support

Covered by the Burris Signature Warranty™. For claims and details, visit the Burris Warranty page.

Resources

• XTR Pro 5.5–30×56mm Product Page
• XTR Pro User Guide (PDF)
• XTR Signature™ Rings
