BTS 35 V2

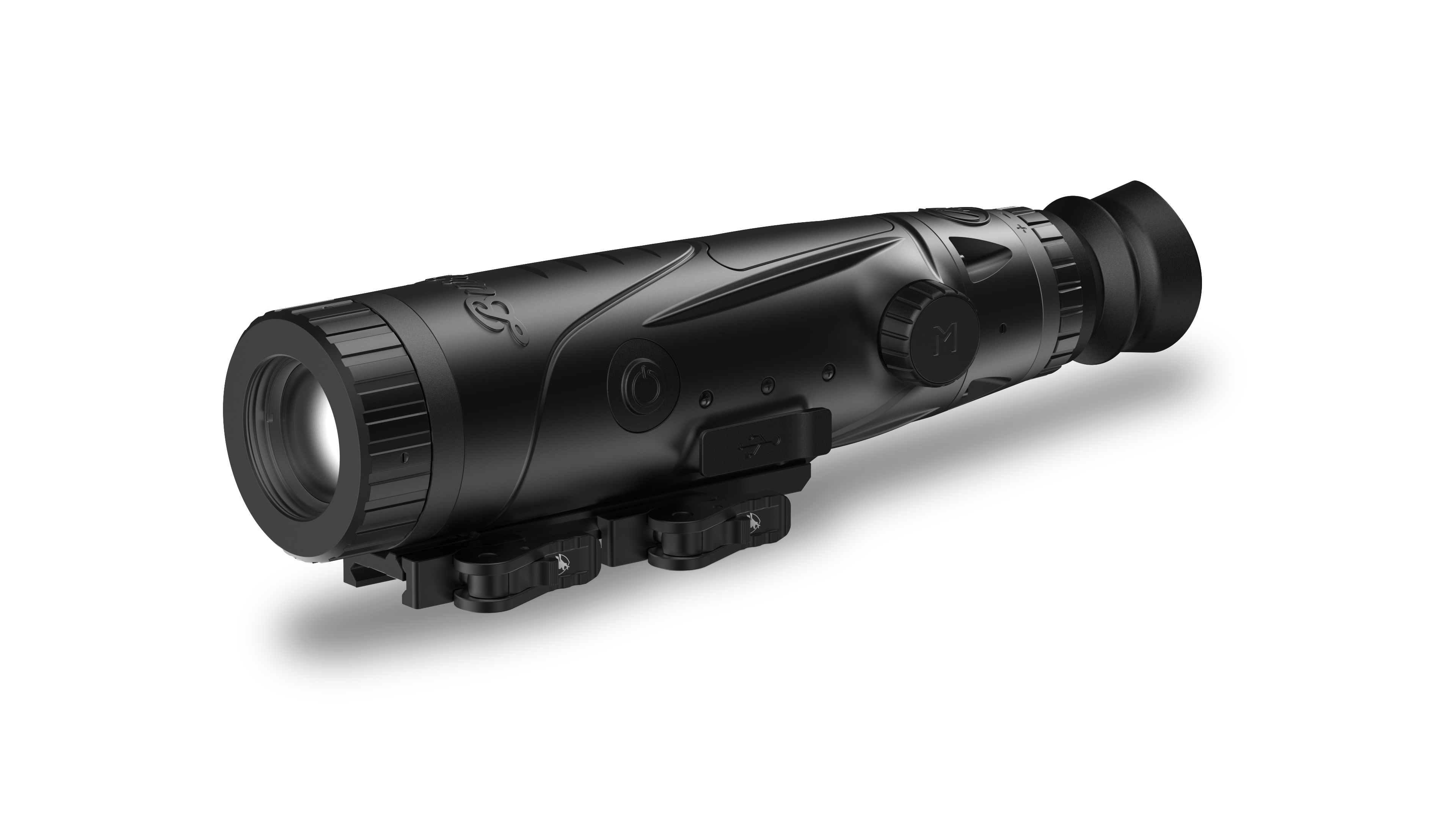

Burris® BTS35 v2 — Thermal Riflescope

Sensor: 400×300 VOx · 12 µm  |  Refresh: 50 Hz  |  Optics: 35 mm F/1.0 · 3.2–12.8× (smooth 1–4× digital)  |  Display: 1024×768 OLED

Tech note — shutter “click” is normal: When the unit performs a shutter calibration, you may hear a faint click and see the image freeze momentarily. That’s expected behavior and keeps the image optimized; it does not spook game in typical field use.

1) Itemized Components (Product Map)

Item #	Component	Function
1	Power Button	On/Off · Stand-by · Manual shutter calibration.
2	Menu Button / Rotary Knob	Press to open/confirm; rotate to navigate; zoom when menu is closed.
3	Focusing Ring (objective)	Image focus; min focus ~3 ft.
4	Diopter Adjustment (eyepiece)	Crisp display/reticle to your eye.
5	Objective Lens (Germanium)	Primary IR optics; keep capped when not in use.
6	USB-C Port & Charge LED	Power/charge; analog video via USB-C→RCA; LED red (charging) → green (full).
7	Removable 18650 Battery Compartment	Swap cell without shutting down (internal cell keeps unit on).
8	QD Picatinny Mount (adjustable cantilever)	Mounting; torque 30 in-lb; use all 3 screws for heavy recoil.
9	Eyepiece	48 mm eye relief; ~5.3 mm exit pupil.

2) Models & Item Numbers

Model	Item # (SKU)
BTS35 v2 Thermal Riflescope	300602

3) Included Accessories

In the Box

QD M1913 Picatinny mount · (1) 18650 removable battery · Battery charger · USB-C→USB-A cable · USB-C→RCA analog video cable

4) Core Specifications

Spec	Value
Detector / Pitch / Range	VOx · 400×300 · 12 µm · 8–14 µm; NETD ≤50 mK
Optics / FOV	35 mm F/1.0 · 7.8° × 5.9° FOV
Zoom / Frame Rate	Optical 3.2× · Digital 1–4× (smooth) · 50 Hz
Display	1024×768 OLED
Power	Internal 18650 + removable 18650; ≥5 hrs @ 25 °C
Interfaces	USB-C power/charge & analog video; BurrisConnect live-view (Wi-Fi)
Environmental	IP67 · Operating +14 °F to +122 °F · recoil 800 G/1 ms
Physical	≤31.4 oz

5) Setup & Use

Task	How to
Mounting	Install included QD base using 2–3 screws (use all 3 for heavy recoil). Torque to 30 in-lb (3.4 Nm). Position in base holes to set eye relief.
Battery install	Use protected 18650 cells 68–71 mm length. Avoid shorter/unprotected cells. Swapping the removable cell won’t power-cycle the unit.
Charging	Charge internal battery via USB-C (5V/2A). LED pulses red while charging; solid green when full. First use: charge ≥4 hrs.
Power & Stand-by	Hold Power for shutdown; release early for Stand-by. Auto Stand-by/Power-off configurable (5/10/15 min; 5/30/60 min).
Focus & Diopter	Set diopter so menu text is crisp; use objective ring for target focus (min focus ~3 ft).
Wi-Fi / App	Enable Wi-Fi, connect to SSID BTS-XXXX, password 12345678, then control/view in BurrisConnect (iOS/Android).

6) Imaging Controls

Control	Options / Notes
Color Palettes	White-Hot · Black-Hot · Red-Hot (1–3 intensity) · Green-Hot · Blue-Hot
Scene Modes	Nature · Enhanced · Highlight
Hot Track	Crosshair tracks hottest point in scene (On/Off)
PIP (Picture-in-Picture)	2× window; place upper-left/middle/right

7) Zeroing & Profiles

Feature	Details
Reticles	10 styles; user-selectable color (red/green/blue/black/white/yellow); optional center dot or cross illumination
Profiles	Save up to 6 reticle/zero profiles; factory reset erases profiles
Zeroing workflow	Select zero distance (e.g., 50 yd/m). Fire group, measure offset, dial E/W in menu, repeat until centered
Stadiametric ranging	Rabbit (20 cm) · Coyote (52 cm) · Hog (80 cm) · Deer (100 cm); adjust stadia with rotary knob

8) Care & Storage

• Store dry/ventilated; top off charge ≥4 hrs every 2 months during storage to preserve battery health.
• Clean lens gently (blower/brush/lens pen; water or lens fluid for heavy dirt). Avoid solvents on non-optical surfaces.

9) Warranty & Service

Region	Term	Notes
U.S.	3-Year Limited	Do not disassemble; contact Burris for service (RMA required before shipping)
International	2-Year Limited	See manual / local dealer for processing

---

User Guide (PDF): BTS35 v2 User Manual
