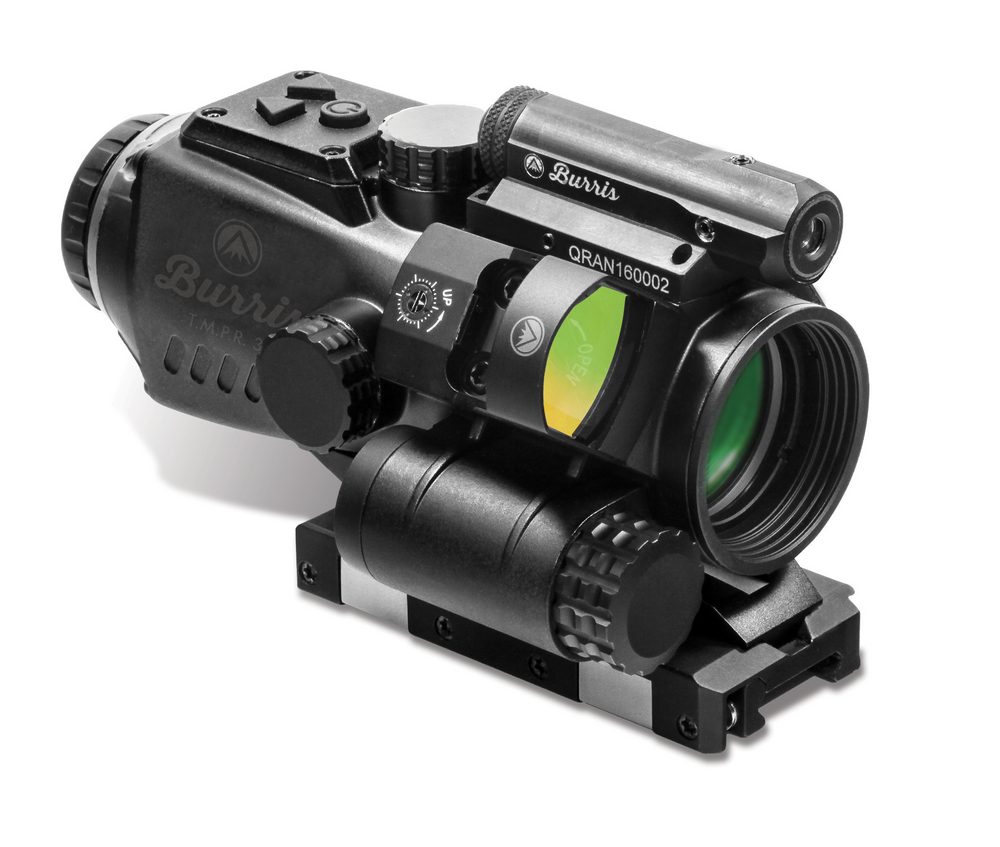

Burris T.M.P.R.® Prism Sight — 3×32 & 5×32
Platform: Modular prism sight with accessory power-sharing · Digital RGB illumination (7 levels: 5 day / 2 NV) · CR123 battery · QD rail mount
Quick facts
• Reticle color cycles Red → Green → Blue (push round button). Hold ~5 s to power OFF. Auto-shutoff: ~4 hrs (day levels) / ~8 hrs (NV levels).
• Accessories (FastFire M3, TMPR Laser, etc.) can draw power from the sight’s CR123 via rear power ports; switchable per side. Not waterproof if the port cap/screw are removed.
• Factory QD base clamps to Picatinny; recoil lugs index rail slots. Low-mount option by removing spacer under the QD base.
• Reticle color cycles Red → Green → Blue (push round button). Hold ~5 s to power OFF. Auto-shutoff: ~4 hrs (day levels) / ~8 hrs (NV levels).
• Accessories (FastFire M3, TMPR Laser, etc.) can draw power from the sight’s CR123 via rear power ports; switchable per side. Not waterproof if the port cap/screw are removed.
• Factory QD base clamps to Picatinny; recoil lugs index rail slots. Low-mount option by removing spacer under the QD base.
1) Itemized Components (Product Map)
| Item # | Component | Function |
|---|---|---|
| 1 | Power / Color Button (round) | ON; tap to cycle Red→Green→Blue; hold ~5 s to OFF. |
| 2 | Brightness ▲ | Increase illumination (7 levels: 5 day / 2 NV). |
| 3 | Brightness ▼ | Decrease illumination. |
| 4 | Diopter Ring (eyepiece) | Sharpen reticle to your eye. |
| 5 | Battery Cap (CR123) | Install 1× CR123, positive (+) first; finger-tighten cap. |
| 6 | Accessory Power Switches (rear, under cap) | Per-side ON/OFF; red = connect to sight battery, white = disconnect. |
| 7 | QD Levers (mount) | Clamp to Picatinny rail; close fully to engage spring tabs. |
| 8 | Recoil Lugs (mount base) | Seat in a rail slot to prevent shift under recoil. |
| 9 | Objective Lens (32 mm) | Primary light-gathering lens. |
| 10 | Mount Spacer (low-mount option) | Remove spacer & QD base screws to lower sight height. |
2) Models & Item Numbers
| Model | Magnification / Obj. | Item # (SKU) |
|---|---|---|
| T.M.P.R. 3 | 3× / 32 mm | 300224 |
| T.M.P.R. 5 | 5× / 32 mm | 300226 |
| T.M.P.R. 3 Kit (with FastFire M3 & Laser) | 3× / 32 mm | 300228 |
3) Core Specifications
| Spec | T.M.P.R. 3 | T.M.P.R. 5 |
|---|---|---|
| Field of View @100 yd | 40 ft | 24 ft |
| Eye Relief | 2.5″ | 2.2″ |
| Close Focus | 10 ft | 25 ft |
| Click Value | 0.5 MOA | 0.25 MOA |
| Max Adjustment | 80 MOA | 50 MOA |
| Weight | 18.2 oz | 19.1 oz |
| Optic Height to Centerline | 1.53″ | 1.53″ |
| Overall Length | 5.6″ | 6.0″ |
4) Setup & Use
| Task | How to |
|---|---|
| Install battery | Remove cap; insert 1× CR123 with + first; replace cap and finger-tighten. |
| Mount to rail | Open both QD levers; seat recoil lugs in a Picatinny slot; push forward toward muzzle; close levers fully. For lower height: remove spacer and reinstall base (use non-permanent thread locker). |
| Focus reticle | Use the eyepiece diopter ring; set until reticle is crisp. |
| Illumination | Round button = ON / color cycle; ▲/▼ = brightness; hold ~5 s to OFF; auto-shutoff after ~4 hrs (day) / ~8 hrs (NV). |
| Zero / sight-in | Sight-in at 100 yd (BDC calibrated). Adjust with 0.5 MOA (TMPR-3) or 0.25 MOA (TMPR-5) clicks; follow directional arrows on caps. |
| Power-share accessories | Remove rear port cap (T-15), set per-side switch red=ON / white=OFF. Reinstall cap & screw—unit is not waterproof without them. |
5) Service & Warranty
- Covered by the Burris Signature Warranty™ (non-thermal optics). For service, start a ticket and get an RMA before shipping.
- Support portal: burris.supportsync.com · Warranty terms: burrisoptics.com/support/warranty
User Guide (PDF): T.M.P.R. Prism Sight — User Guide
