Signature LRF Binoculars

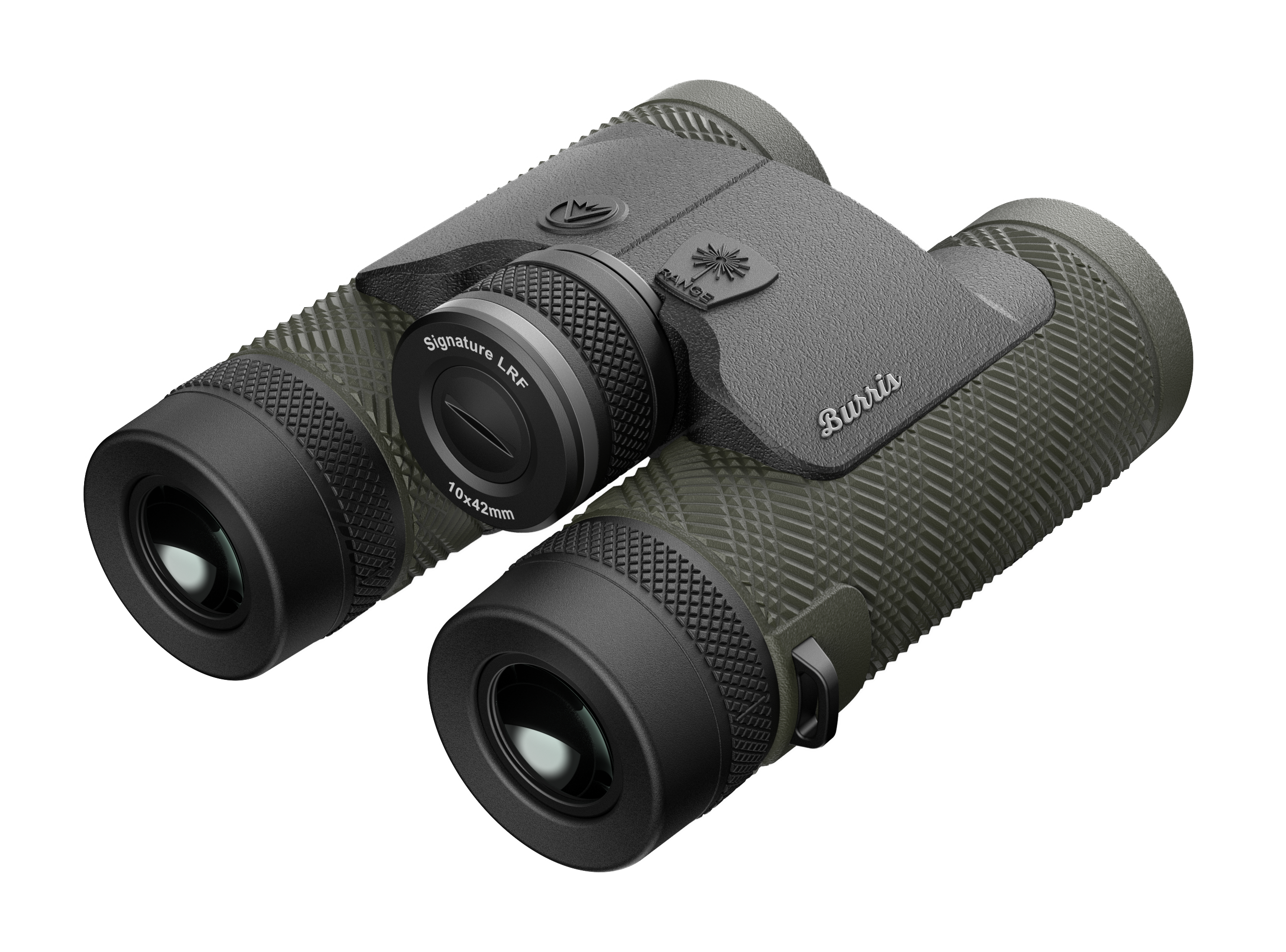

Burris Signature LRF® — 10×42 Rangefinding Binoculars

Range: 12–2,600 yd (target dependent)  |  Magnification: 10×  |  Battery: 1× CR2 (insert with “−” facing out)

Tech Notes
• Three ranging modes: Auto (strongest signal), Sport (nearest target), Hunt (farthest target through brush).
• Five display layouts: LOS, HOR, LOS+HOR, LOS+ANG, HOR+ANG — brightness levels 1–5.
• Scan Mode: Hold the Power button for continuous updates; display auto-off after ~10 s.
• Class 1 (eye-safe) laser; nitrogen-filled, waterproof & fogproof chassis.

1) Itemized Components (Product Map)

Item #	Component	Function
1	Adjustable Eyecups	Twist up for bare eyes; down for glasses.
2	Left Diopter Ring	Balances your left eye after center focus is set.
3	Display Focus Knob	Sharpens the internal OLED display.
4	Center Focus Knob / Battery	Main focus; houses 1× CR2 (− outward).
5	Power / Range Button	Tap to range; hold for Scan mode.
6	Mode Button	Open menu, adjust brightness, change modes.
7	Tripod Adapter Port	Accepts standard tripod adapter.
8	Harness Lugs	Connect strap or bino harness.
9	42 mm Objectives	HD glass — image quality + laser return strength.

2) Models & Item Numbers

Model	Item #	Color
Signature LRF 10×42	300299	Green / Gray

3) Quick Start (Focus • Menu • Range)

Step	What to Do
Install Battery	Insert CR2 (− outward) into center focus knob.
Set IPD & Eyecups	Align barrels until the circles merge; adjust eyecups.
Focus Diopter	Cover left → set center focus. Cover right → adjust diopter.
Focus Display	Tap Power and adjust display knob until crisp.
Open Menu	Hold Mode ~2s. Power = cycle. Mode = select.
Adjust Brightness	Select levels 1–5.
Range	Tap Power for single range; hold for Scan mode.

4) Display & Measurement Options

Setting	Description
Units	Yards or meters.
LOS	Line-of-sight distance.
HOR	Angle-compensated horizontal distance.
LOS + HOR	Displays both distances.
LOS + ANG	LOS plus slope angle (°).
HOR + ANG	Horizontal distance + angle (°).

5) Ranging Performance

Target Type	Typical Range
Reflective	Up to ~2,600 yd
Non-reflective	Up to ~1,600 yd
Deer-sized game	Up to ~1,100 yd
Minimum	~12 yd
Accuracy	±1 yd ≤1000 yd; ±2 yd beyond

6) Core Specifications

Spec	Value
Magnification	10×
Objective Size	42 mm
FOV @ 100 yd	334 ft
Eye Relief	16 mm
Angle Range	±70°
Diopter Adjustment	±3.5
Dimensions	6.0″ × 5.5″ × 2.7″
Weight	36 oz
Operating Temp	5°F to 131°F
Battery Life	~2000 ranges
Laser Class	Class 1 (eye-safe)
Water/Fogproof	Nitrogen-filled

7) Troubleshooting

Issue	What to Try
Won’t Power On	Verify CR2 polarity (− outward); replace battery.
Dim Display	Increase brightness; refocus display.
No Range Reading	Clean lenses; confirm mode; try larger target; heavy weather may block laser.

8) Care & Warranty

• Blow or brush grit before wiping lenses. For dried mud, use clean water or lens fluid first.
• Do not disassemble — factory service only.
• Covered by the Burris Signature Warranty™.

User Manual (PDF): Signature LRF® Binocular — Full User Guide
