Signature HD Riflescopes

Burris Signature HD® — Riflescopes

Models: 2–10×40 · 3–15×44 · 5–25×50
Main tubes: 1″ (2–10×40 & 3–15×44) · 30 mm (5–25×50)

Tech Notes
• Diopter focus: Glance at a plain background and turn the eyepiece until the reticle appears crisp and black.
• Push/pull locking turrets: Pull up to unlock, dial adjustment, then push down to lock.
• Parallax: 2–10×40 is fixed at 100 yd. The 3–15×44 and 5–25×50 use side focus from approximately 25 yd to infinity.
• Illumination: Select SKUs use a CR2032 battery with the positive side up.
• Care: Remove grit before wiping lenses. Do not disassemble.

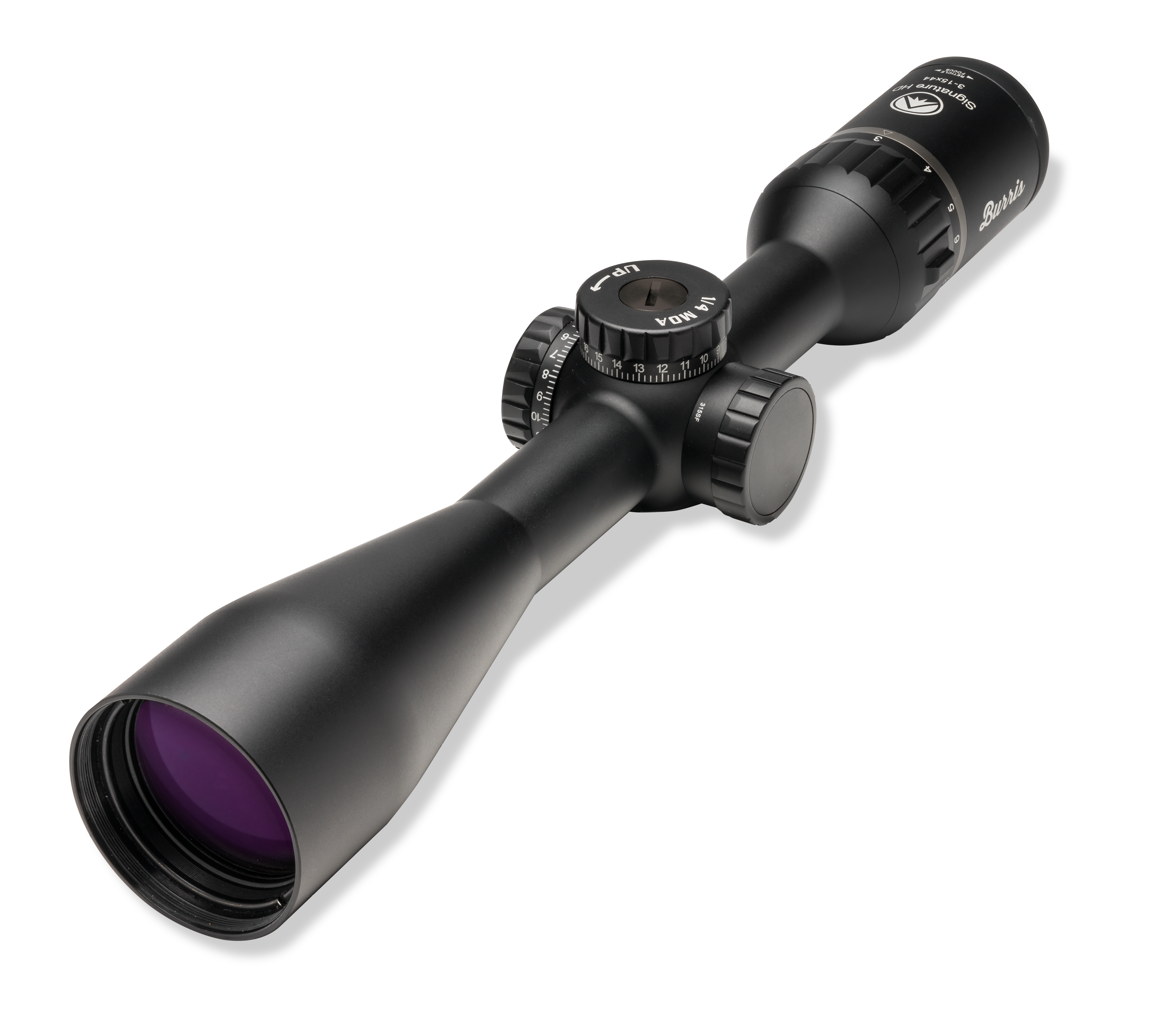

1) Itemized Components (Product Map)

Item #	Component	Function
1	Eyepiece / Diopter Ring	Focus reticle sharp to your eye.
2	Magnification Ring	Set zoom.
3	Elevation Turret	POI up/down; tall target versions support Zero Click Stop.
4	Windage Turret	POI left/right.
5	Side Parallax / Focus	3–15×44 and 5–25×50 only.
6	Illumination Knob	6 brightness levels with OFF detents on select SKUs.
7	Objective Bell / Lens	Primary light-gathering element.
8	Main Tube	1″ or 30 mm depending on model.

2) Models & Item Numbers (SKUs)

Model	Item #	Reticle	Knob Style	Illumination
2–10×40	200530	Ballistic E3	Short Locking	No
3–15×44	200531	Ballistic E3	Tall Locking / Zero Stop	Yes
3–15×44	200532	Plex	Short Locking	No
5–25×50	200533	Ballistic E3	Short Locking	Yes
5–25×50	200534	Fine Plex	Tall Locking / Zero Stop	No
5–25×50	200535	6.5 Creedmoor (FFP)	Tall Locking / Zero Stop	Yes

3) Core Specifications

Spec	200530	200531	200532
Model	2–10×40	3–15×44	3–15×44
Focal Plane	Rear	Rear	Rear
Main Tube	1″	1″	1″
Objective	40 mm	44 mm	44 mm
FOV @100 yd	54–10.8 ft	37.5–7.5 ft	37.5–7.5 ft
Eye Relief	3.5–3.8″	3.5–3.8″	3.5–3.8″
Click Value	1/4 MOA	1/4 MOA	1/4 MOA
Elev./Wind.	120/120 MOA	80/80 MOA	80/80 MOA
Parallax	Fixed 100 yd	25 yd → ∞	25 yd → ∞
Length	11.75″	13.13″	13.13″
Weight	17.6 oz	20.8 oz	20.0 oz
Battery	—	CR2032	—

Spec	200533	200534	200535
Model	5–25×50	5–25×50	5–25×50
Focal Plane	Rear	Rear	Front
Main Tube	30 mm	30 mm	30 mm
Objective	50 mm	50 mm	50 mm
FOV @100 yd	22.5–4.5 ft	22.5–4.5 ft	22.5–4.5 ft
Eye Relief	3.3–3.6″	3.3–3.6″	3.3–3.6″
Click Value	1/4 MOA	1/4 MOA	1/4 MOA
Elev./Wind.	65/65 MOA	65/65 MOA	65/65 MOA
Parallax	25 yd → ∞	25 yd → ∞	25 yd → ∞
Length	14.3″	14.3″	14.3″
Weight	24.0 oz	23.2 oz	24.0 oz
Battery	CR2032	—	CR2032

4) Mounting & Zero — Quick Start

1. Rings & Bases

Use proper 1″ or 30 mm rings depending on model. Level the rifle and optic before final tightening.

2. Eye Relief

Set eye relief at maximum power and make sure the reticle is level before applying final torque to the rings.

3. Zeroing

Boresight first, confirm impacts at 100 yards, then reset the turrets back to zero after the rifle is properly sighted in.

4. Zero Click Stop

Tall knob models use a 1.5 mm hex to set the Zero Click Stop after zeroing.

5) Reticles — Usage Tips

• Ballistic E3 (RFP): Use holdovers and wind references at highest power.
• Fine Plex (RFP): Ideal for precise aiming when dialing elevation.
• 6.5 Creedmoor (FFP): Subtensions remain valid at any power.

6) Warranty & Service

Fully waterproof and fogproof. Clean the exterior as needed, but do not disassemble.

Covered by the Burris Signature Warranty™ .

User Guide (PDF): Signature HD® Riflescopes — User Guide
