RT Rifle Scopes

Burris RT™ — Riflescopes

Models & Item Numbers (SKUs)

Model	Item #	UPC	Notes

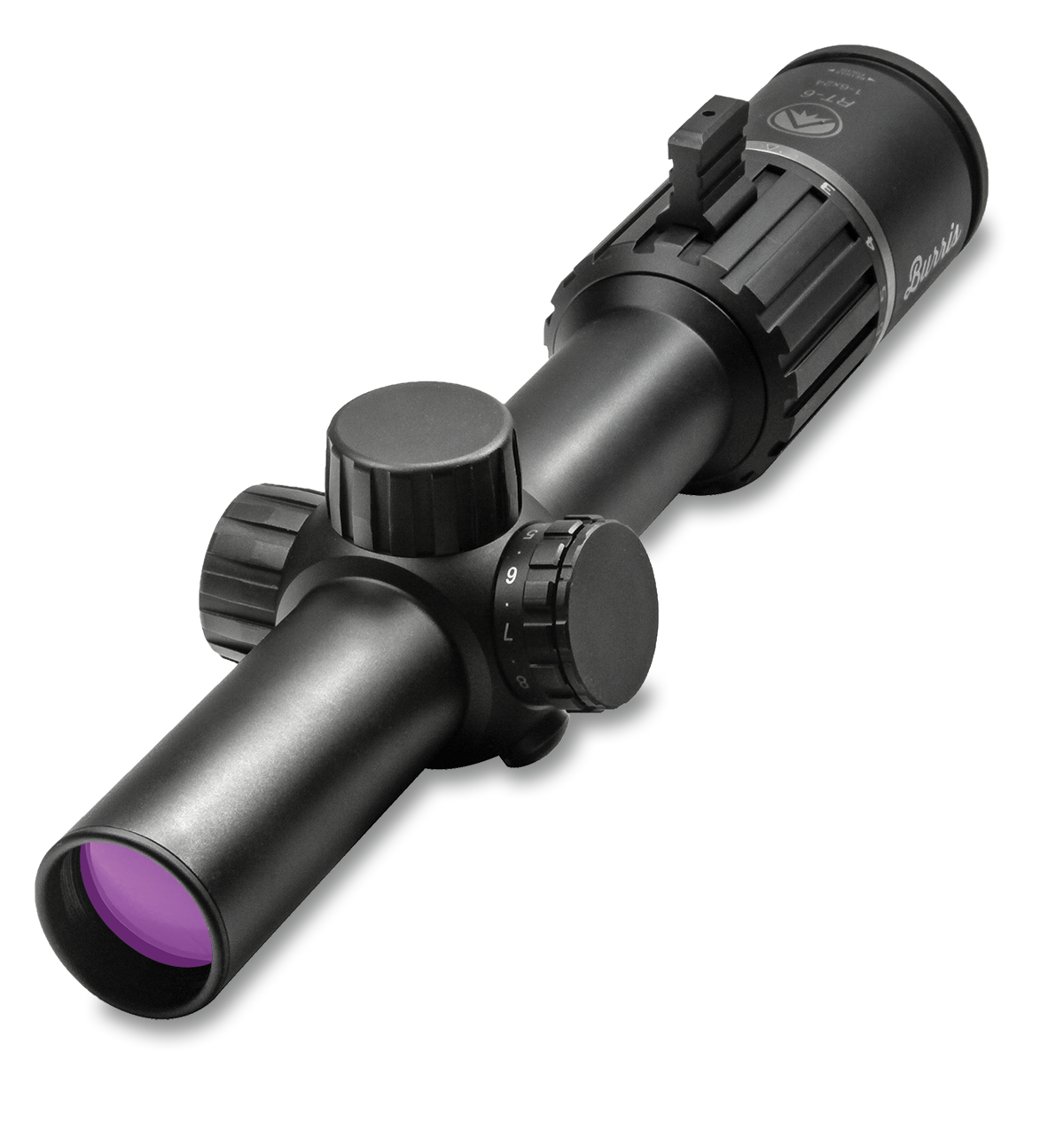

RT-6 1–6×24 (scope only)	200472	000381004727	Illuminated Ballistic AR™ 5X, 30 mm tube, CR2032 battery
RT-6 Tactical Kit (scope + FastFire 3 + PEPR®)	200475	000381004758	Factory combo package
RT-15 3–15×50 (FFP)	200480	000381004802	SCR 2™ MIL reticle, Zero Click Stop
RT-25 5–25×56 (FFP)	200481	000381004819	SCR 2™ MIL reticle, Zero Click Stop

Tech Highlights
• Side parallax on RT-15/RT-25 • FFP (RT-15/RT-25) and RFP (RT-6) optical systems
• Reticles: Ballistic AR™ (RT-6) · SCR 2™ tree reticle (RT-15/RT-25)
• RT-6 reticle illumination with OFF detents between levels (CR2032, “+” up)
• Zero Click Stop on RT-15/RT-25 elevation • Integrated throw lever (all models)

1) Itemized Components (Product Map)

Item #	Component	Function
1	Eyepiece / Diopter Ring	Focus the reticle sharp/black using quick-glance method.
2	Magnification Ring + Throw Lever	Set zoom; lever position adjustable by loosening its screw.
3	Elevation Turret	RT-6: low-profile 0.5 MOA clicks · RT-15/25: target 0.1 mrad with Zero Click Stop.
4	Windage Turret	RT-6: low-profile, pull-up to free dial for zero reset · RT-15/25: target 0.1 mrad.
5	Side Parallax / Focus (RT-15/RT-25)	Sharpen image and remove parallax at distance.
6	Illumination Knob (RT-6)	Rotary levels with OFF detents; battery inside cap (CR2032).
7	Objective Bell / Lens	Primary light-gathering element.

2) Setup & Use (Focus • Turrets • Illumination • Parallax)

Topic	Guidance
Eyepiece focus	Glance at sky/plain wall while turning diopter until reticle is crisp/black (don’t stare while turning).
RT-6 zero reset (low-profile)	Hold knob from turning → insert pen into hole opposite “0” → rotate dial ring to align “0” with index. For windage: loosen top screw, pull cap up (no clicks), set “0”, push down & retighten.
RT-15/25 Zero Click Stop	Loosen 3 cap set-screws & lift cap → loosen 3 Zero-Click-Stop ring screws → rotate ring clockwise to stop → snug screws → reinstall cap with “0” at index, snug screws (don’t overtighten).
Illumination (RT-6)	Rotate knob to desired level (6 or 10 levels depending on revision) with OFF between each. Power: 1× CR2032, flat “+” up; remove for long-term storage.
Parallax (RT-15/RT-25)	Turn side focus until target is sharp and reticle no longer shifts against target as you move your eye.

3) Reticles — Quick Reference

Model	Reticle	Notes
RT-6 1–6×24	Ballistic AR™ (RFP, illuminated)	Broken circle + center dot for speed; trajectory holds to ~600 yd; 400/500-yd tick marks subtend ~18″ at their distances.
RT-15 3–15×50 · RT-25 5–25×56	SCR 2™ (FFP)	MRAD “tree” with 0.2-mrad graduations; optimized for precision shot tracking, holds, and ranging.

4) Specifications (by model)

Spec	RT-6 1–6×24	RT-15 3–15×50	RT-25 5–25×56
Focal Plane	Rear (RFP)	Front (FFP)	Front (FFP)
Main Tube	30 mm	30 mm	30 mm
Objective (clear aperture)	24 mm	50 mm	56 mm
Objective bell O.D.	30 mm	59 mm	65.6 mm
Field of View @100 yd (low→high)	106–18.5 ft	37.5–7.5 ft	22.5–4.5 ft
Eye Relief	3.3–4.0″	3.5–3.8″	3.3–3.6″
Exit Pupil (low→high)	11.5–5.2 mm	8–3.3 mm	8–2.2 mm
Click Value	1/2 MOA	0.1 mrad	0.1 mrad
Total Elevation / Windage	80 MOA / 80 MOA	80 MOA / 80 MOA	65 MOA / 65 MOA
Length	10.3″	13.2″	14.3″
Weight	17.4 oz	23.2 oz	24.8 oz
Illumination / Battery	Yes — CR2032 (top cap)	No	No

5) Care & Warranty

• Waterproof & fogproof; remove grit before final cleaning. For heavy dirt/mud, rinse with clean water or lens fluid first.
• Do not disassemble; moving parts are factory-lubed. Contact Burris Support for service.
• Covered by the Burris Signature Warranty™.

---

User Guide (PDF): RT™ Riflescopes — User Guide
