Fullfield

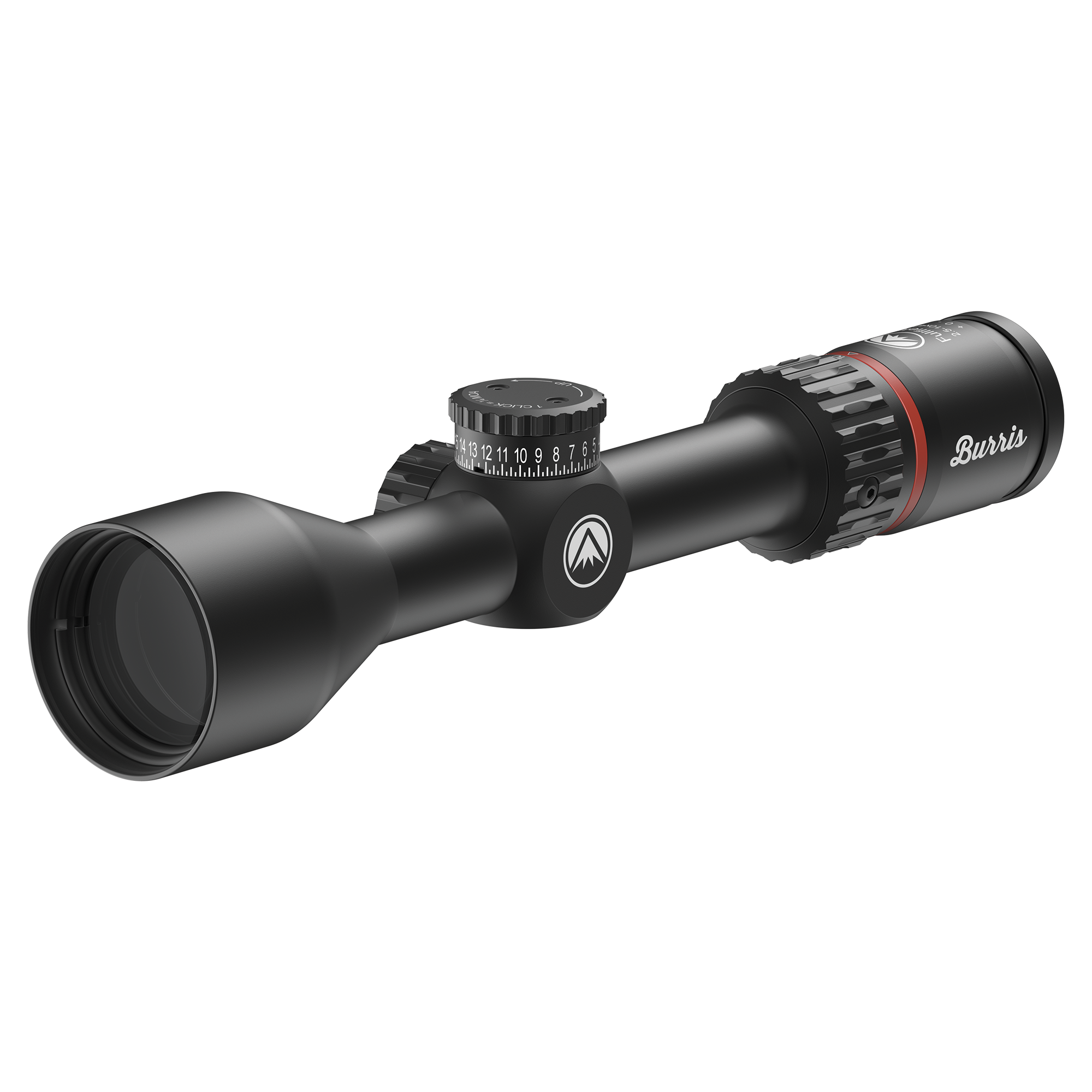

Burris Fullfield® — Riflescopes (2025)

Magnification families: 2–8×35 · 2.5–10×42 · 3–12×42 · 3–12×56 · 4–16×50 · 6–24×50

Tech Highlights
• Rear focal plane reticles across the line • CR2032 battery on illuminated models
• Side parallax on 4–16×50 & 6–24×50 (and 3–12×42 Wind Ret-Illuminated) • IPX7 water rating
• Burris Knob Synergy ® elevation system (Standard, Advanced-Capped w/ Zero-Click-Stop, Advanced-Exposed w/ Zero-Click-Stop)

1) Itemized Components (Product Map)

Item #	Component	Function
1	Eyepiece / Diopter Ring	Focus the reticle sharp to your eye (quick-glance method).
2	Power (Zoom) Ring	Set magnification.
3	Elevation Turret	POI up/down; supports Knob Synergy® upgrades & Zero-Click-Stop (select knobs).
4	Windage Turret (capped)	POI left/right; resettable dial.
5	Side Parallax / Focus	On 4–16×50, 6–24×50; also on 3–12×42 (Wind Ret-Illum.)
6	Illumination Knob (select models)	Brightness control; CR2032 battery (“+” up).
7	Objective Bell / Lens	Primary light-gathering lens.

2) Models & Item Numbers (Illuminated SKUs marked)

Model	Item # (SKU)	Illuminated?
2–8×35	201500 · 201501	201500 = Yes; 201501 = No
2.5–10×42	201511 · 201512	201511 = Yes; 201512 = No
3–12×42	201530 · 201531 · 201533	201533 = Yes; 201530/201531 = No
3–12×56	201540 · 201541 · 201542	201542 = Yes; 201540/201541 = No
4–16×50	201550 · 201552 · 201553	201550 = Yes; 201552/201553 = No
6–24×50	201560	No

3) Core Specifications (by model)

All models: Rear focal plane · 1/4 MOA clicks · IPX7 water rating

Spec	2–8×35	2.5–10×42	3–12×42	3–12×56	4–16×50	6–24×50
Tube	1″	1″	1″	30 mm	1″	30 mm
Objective	35 mm	42 mm	42 mm	56 mm	50 mm	50 mm
Field of View @100 yds	55 – 13.5 ft	43 – 11 ft	36 – 9.25 ft	36.5 – 9 ft	27 – 6.75 ft	17 – 4.8 ft
Eye Relief	3.8 – 4.2″	3.9 – 4.1″	3.9 – 4.2″	3.9 – 4.1″	3.7 – 4.2″	3.8 – 4.1″
Exit Pupil (low→high)	9.8 – 4.5 mm	10.1 – 4.6 mm	10.5 – 3.5 mm	9.7 – 5.0 mm	10.0 – 3.8 mm	8.5 – 2.9 mm
Click Value	1/4 MOA	1/4 MOA	1/4 MOA	1/4 MOA	1/4 MOA	1/4 MOA
Total Elev/Windage	81 / 81 MOA	81 / 81 MOA	72 / 72 MOA	95 / 95 MOA	54 / 54 MOA	64 / 50 MOA
Parallax / Focus	Fixed @ 100 yd	Fixed @ 100 yd	Fixed @ 100 yd (201530/31); Side @ 25 yd → ∞ (201533)	Fixed @ 100 yd	Side @ 25 yd → ∞	Side @ 25 yd → ∞
Length	9.75″	10.5″	11.1″	11.2″	12.3″	14.4″
Weight (approx.)	13.5–14.1 oz	14.7–15.4 oz	14.7–15.3 oz	19.7–20.2 oz	17.7–18.2 oz	18.9 oz
Battery (illum.)	CR2032 (201500)	CR2032 (201511)	CR2032 (201533)	CR2032 (201542)	CR2032 (201550)	—

4) Knob Styles — Reset to Zero (summary)

Knob	How to reset
Standard (capped)	Loosen two set-screws on cap, rotate dial ring to “0”, snug the screws. (Do not overtighten.)
Advanced-Capped (Zero-Click-Stop)	Remove cap & dial ring, set zero-click-stop ring fully clockwise, reinstall dial at “0”, snug screws.
Advanced-Exposed (Zero-Click-Stop)	Loosen top screws, set zero-click-stop ring fully clockwise, reinstall dial at “0”, snug screws.

5) Reticle & Knob per SKU (quick reference)

SKU	Model	Reticle	Knob Style	Parallax/Focus
201500	2–8×35	Ballistic E3™ (Illuminated)	Standard Capped	Fixed 100 yd
201501	2–8×35	Plex	Standard Capped	Fixed 100 yd
201511	2.5–10×42	Ballistic E3™ (Illuminated)	Standard Capped	Fixed 100 yd
201512	2.5–10×42	Plex	Standard Capped	Fixed 100 yd
201530	3–12×42	Ballistic E3™	Standard Capped	Fixed 100 yd
201531	3–12×42	Plex	Standard Capped	Fixed 100 yd
201533	3–12×42	Wind Ret-Illuminated	Advanced Exposed	Side 25 yd → ∞
201540	3–12×56	Ballistic E3™	Standard Capped	Fixed 100 yd
201541	3–12×56	Heavy Plex	Standard Capped	Fixed 100 yd
201542	3–12×56	3P#4 (Illuminated)	Standard Capped	Fixed 100 yd
201550	4–16×50	Ballistic E3™ (Illuminated)	Standard Capped	Side 25 yd → ∞
201552	4–16×50	Wind Ret	Advanced Exposed	Side 25 yd → ∞
201553	4–16×50	Plex	Advanced Capped	Side 25 yd → ∞
201560	6–24×50	Ballistic E3™	Advanced Exposed	Side 25 yd → ∞

6) What’s in the Box

• Fullfield riflescope
• User Guide
• 1.5 mm Hex wrench & extra turret screws
• CR2032 battery (on illuminated models)
• Lens cloth

7) Care & Service

• Blow/brush grit before using lens tissue/solution; for dried mud, rinse with clean water or lens fluid.
• Do not disassemble; moving assemblies are factory-lubed. Contact Burris Technical Support for service.
• Covered by the Burris Signature Warranty™.

---

User Guide (PDF): Fullfield® User Manual — INSTR-9500 Rev. 1 (2025)
