Fullfield 2

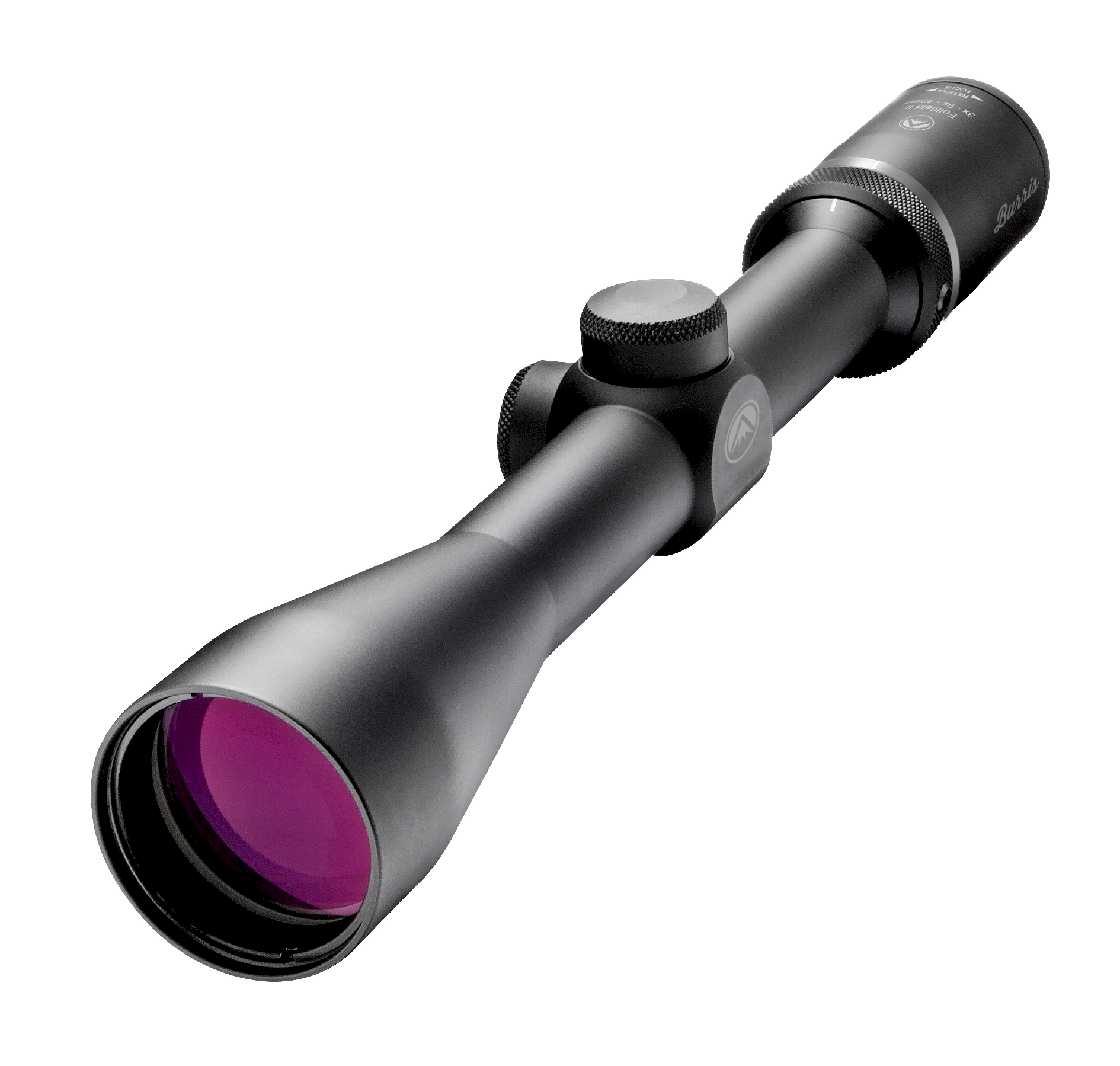

Burris Fullfield II® — Riflescopes

Common Models & Item #s: 2–7×35 (200123) · 3–9×40 (200162) · 4.5–14×42 AO (200183) · 6.5–20×50 (200193)

At-a-Glance
• Rear focal plane across the line • 1-inch main tubes • Fully waterproof & nitrogen-filled
• Clicks: 2–7× = 1/2 MOA; all others = 1/4 MOA • AO parallax on 4.5–14× & 6.5–20× • Signature Warranty™

---

1) Itemized Components (Product Map)

Item #	Component	Function
1	Eyepiece / Diopter	Focus reticle to your eye using quick-glance method.
2	Power (Zoom) Ring	Set magnification.
3	Elevation Turret	Impact UP/DOWN; low-profile, capped.
4	Windage Turret	Impact LEFT/RIGHT; low-profile, capped.
5	Objective	Primary light-gathering lens.
6	Parallax / Focus (select models)	Adjustable Objective (AO) on 4.5–14×42 & 6.5–20×50; fixed on others.

2) Using the Scope (Focus, Parallax, Clicks)

• Eyepiece focus: Quick-glance the reticle at a blank background; rotate eyepiece until it snaps sharp. Don’t stare while turning.
• Parallax/focus (AO models): Rotate objective’s scale until the image is sharp and the reticle no longer shifts against the target as you move your eye.
• Click values: 2–7× = 1/2 MOA per click; 3–9×, 4.5–14×, 6.5–20× = 1/4 MOA per click.

3) Core Specifications (by model)

Spec	2–7×35 (200123)	3–9×40 (200162)	4.5–14×42 AO (200183)	6.5–20×50 (200193)
Main Tube	1″	1″	1″	1″
Objective Lens	35 mm	40 mm	42 mm	50 mm
Field of View @100 yds	45 – 13 ft	33 – 13 ft	22 – 7.5 ft	18 – 6 ft
Eye Relief	3.1 – 4.1″	3.1 – 3.4″	3.1 – 3.8″	3.1 – 3.6″
Exit Pupil (low→high)	17 – 5 mm	13 – 5 mm	9 – 3 mm	7.6 – 2.5 mm
Click Value	1/2 MOA	1/4 MOA	1/4 MOA	1/4 MOA
Total Elev / Wind	60 / 60 MOA	50 / 50 MOA	40 / 40 MOA	30 / 30 MOA
Parallax / Focus	Fixed @ 100 yd	Fixed @ 100 yd	AO: 50 yd → ∞	AO: 50 yd → ∞
Length	11.4″	12.2″	13.0″	14.5″
Weight	12 oz	13 oz	18 oz	19 oz
Focal Plane	Rear (SFP)	Rear (SFP)	Rear (SFP)	Rear (SFP)

4) Reticles (What You Get)

Model / SKU	Reticle	Notes
2–7×35 (200123)	Ballistic Plex™	Simple drop lines for ~100–500 yd holds.
3–9×40 (200162)	Ballistic Plex™	Use at highest power for published subtensions.
4.5–14×42 AO (200183)	Ballistic Plex™	AO for precision from 50 yd to ∞.
6.5–20×50 (200193)	Ballistic Mil-Dot	Mil-dots for ranging & wind; AO 50 yd → ∞.

5) Ballistic Plex — Quick Setup

Step	What to do
1	Zero at 100 yd or 200 yd per your cartridge.
2	Use highest magnification for published holds, or use Burris Ballistic Tools to get exact hold values for your load.
3	Confirm drops every 100 yd locally; keep a dope card.
4	Use the matching Plex line; fine-tune holds between marks.

6) Mounting, Use-Case Tips & Care

• Rings: All models use 1″ rings (e.g., Burris Zee/Signature).
• Best for: 2–7×35 = timber/brush; 3–9×40 = general big-game; 4.5–14×42 = precision deer/antelope; 6.5–20×50 = varmints/targets.
• Care: Blow/brush grit before lens fluid; do not disassemble. Fully waterproof/fogproof.

7) What’s in the Box

• Fullfield II riflescope
• User Guide
• Lens cloth
• Turret cap screws/hex key (varies by batch)

8) Warranty & Docs

Covered by the Burris Signature Warranty™.

---

User Guide (PDF): Fullfield II® Riflescopes — User Guide
