Four Xe

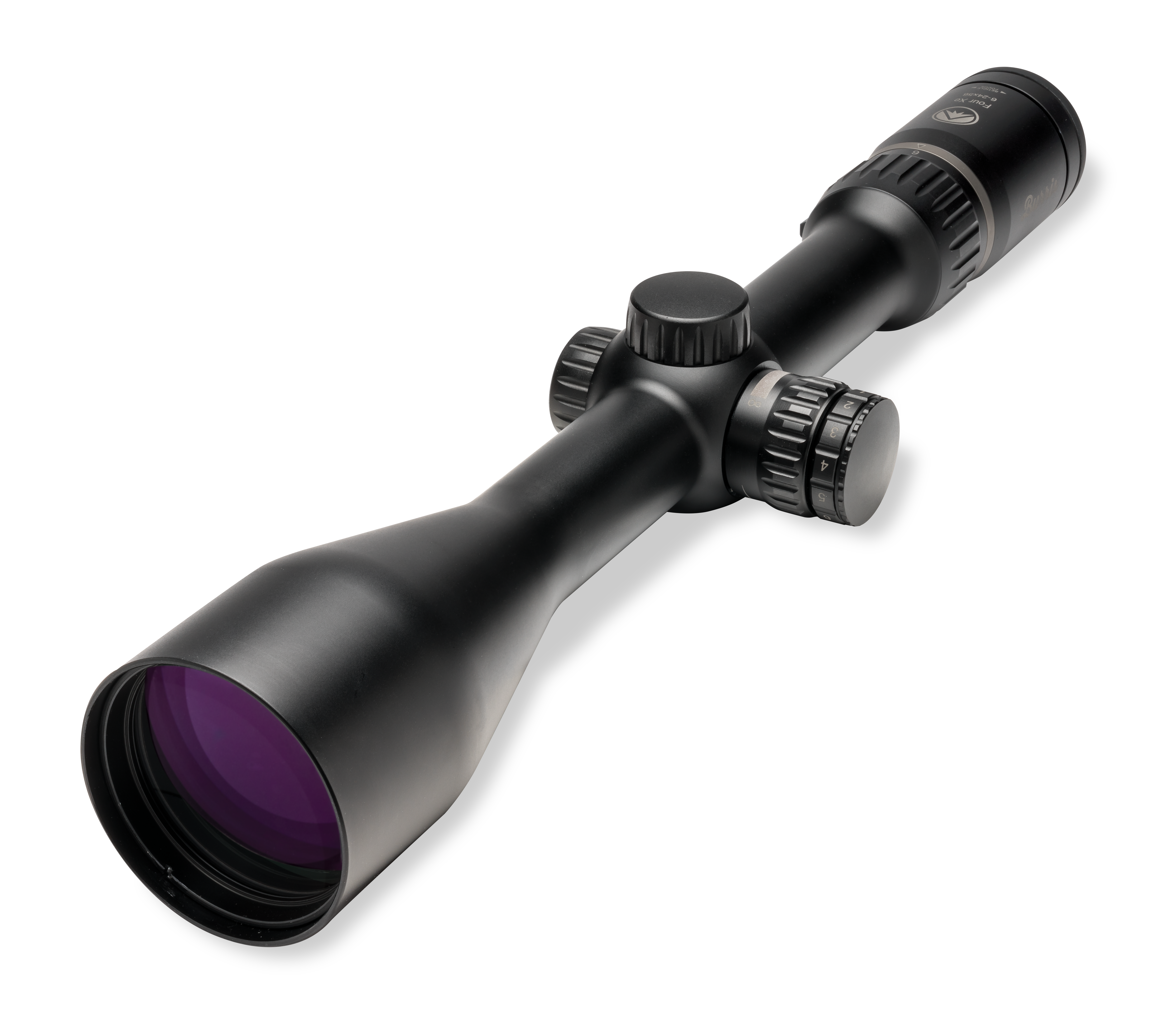

Burris Four Xe™ — Riflescopes

Models & Item #s:  1–4×24 (200502) |  2.5–10×50 (200503) |  3–12×56 (200504) |  6–24×56 (200505)

---

1) Itemized Components (Product Map)

#	Component	Function
1	Eyepiece / Diopter	Focus the reticle to your eye.
2	Power (Zoom) Ring	Set magnification.
3	Illumination Knob	11 levels with OFF detents between settings.
4	Battery Compartment (in illum. knob)	CR2032, “+” side up.
5	Elevation Turret	Impact UP/DOWN (click values vary by model).
6	Windage Turret	Impact LEFT/RIGHT.
7	Objective	Primary light-gathering lens (per model).

2) Using the Scope (Focus, Clicks, Illumination)

• Eyepiece focus: Glance at sky/plain wall and adjust diopter until the reticle appears sharp/black; don’t stare while turning to avoid your eyes “auto-focusing.”
• Clicks: Turrets are finger-adjustable. Click values are model-dependent: 1–4× = 2 cm @ 100 m; all others = 1 cm @ 100 m.
• Zero-stop dial reset (optional): Loosen the two set screws on the dial cap, rotate the numbered dial to “0” (do not let the turret itself click), then re-tighten.
• Illumination: 11 levels with OFF detents between settings; lowest for low-light, highest for daytime. Battery = CR2032; install “+” up.

3) Mounting & Care

• Use quality 30 mm rings/bases (e.g., Burris Zee/Signature). Keep light forward pressure while tightening to seat against the recoil lug/face.
• Fully waterproof, shockproof, nitrogen-filled; clean lenses with blower/soft brush first, then lens tissue/solution.

4) Reticle Options (model-dependent)

Reticle	Notes
German 3P #4	Bold 3/6/9 o’clock posts with fine center; illuminated dot (11 settings); fast at 1×.
E3™ MOA	Hash marks for 100–400 yd holds; wind dots for ~10 mph crosswind.
SCR™ MIL	Clean competition tree; precise milling/wind holds; illuminated center on select models.

5) Core Specifications (by model)

Spec	1–4×24 (200502)	2.5–10×50 (200503)	3–12×56 (200504)	6–24×56 /Burris Four Xe 6-24x50 (200505)/(200506)
Main Tube	30 mm	30 mm	30 mm	30 mm
Objective	24 mm	50 mm	56 mm	56 mm / 50 mm
Reticles	3P #4	3P #4	3P #4	E3™ / SCR MIL
Focal Plane	Second	Second	Second	Second
FOV @100 m (low→high)	43.5 → 10.2	16.6 → 4.0	14.0 → 3.4	5.7 → 1.6
Eye Relief	90 mm	100 mm	110 mm	88 mm
Exit Pupil (low→high)	12.3 → 6.3 mm	13.5 → 6.0 mm	13.8 → 5.7 mm	9.6 → 2.9 / 8.5 → 2.6 mm
Click Value	2 cm @ 100 m	1 cm @ 100 m	1 cm @ 100 m	1 cm @ 100 m
Elevation Range (total)	70 MOA	60 MOA	60 MOA	25 MOA
Windage Range (total)	70 MOA	60 MOA	60 MOA	25 MOA
Length	26.2 cm	34.8 cm	37.2 cm	38.3 cm

↑ Back to Top

6) Warranty

30-Year Warranty (materials & workmanship).

---

User Guide (PDF): Four Xe Riflescopes — User Guide
