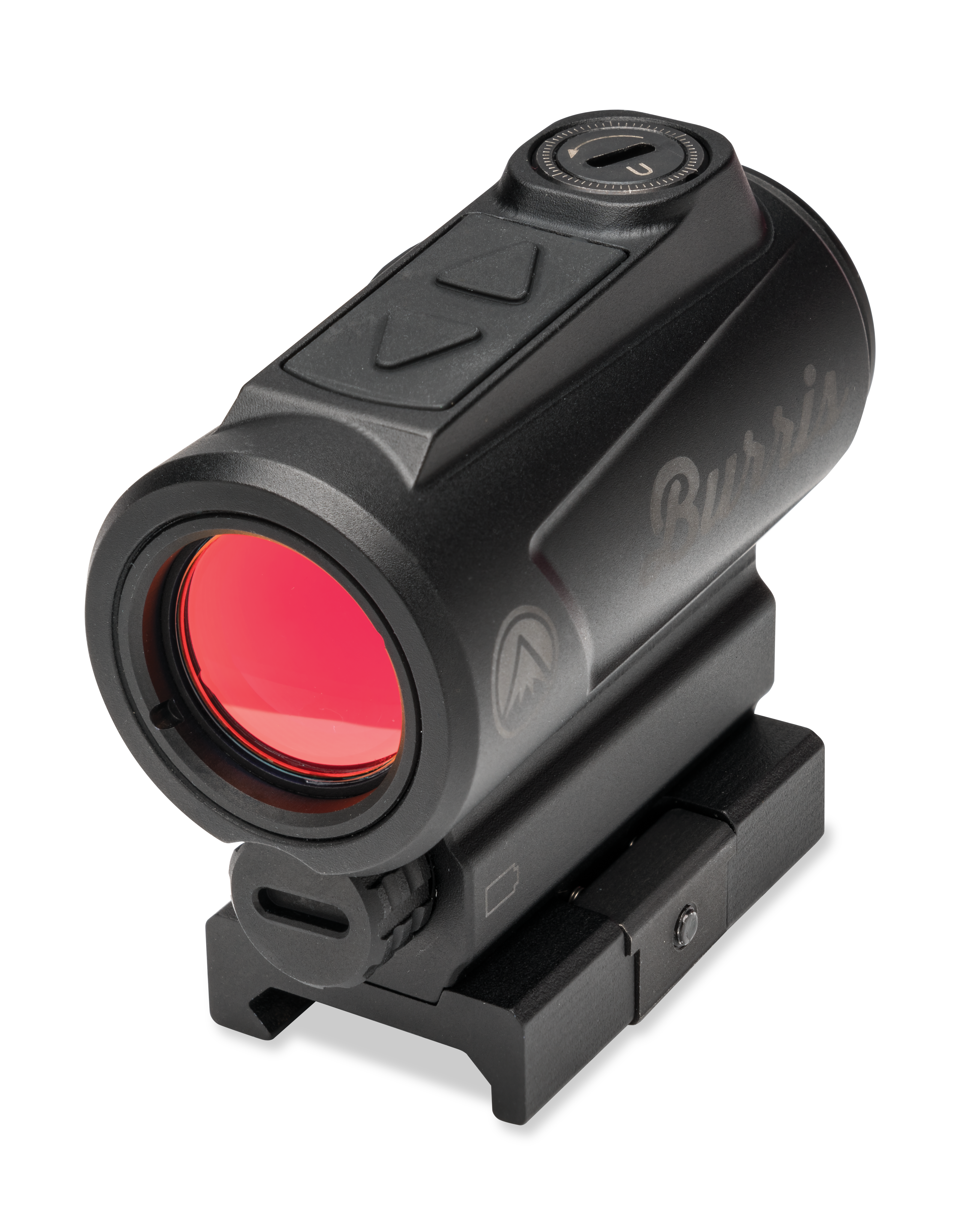

Burris FastFire® RD — Rifle Dot Red Dot Sight

Item #: 300260 | Dot size: 2 MOA | Battery: 1× AAA | Mount: Integrated Picatinny

Tech Notes — Astigmatism, Blurry Dots & Setup Tips
• Astigmatism: Uncorrected astigmatism or dry eyes can make the dot look like a starburst/comet. Check by viewing the dot through a phone camera (should look crisp), and/or lower brightness.
• Training (carbines/handguns): Bring the sight close to your eye to acquire the dot, then press out slowly while keeping it centered; repeat until presentation is automatic.
• Emitter cleanliness: Smudges, oil, or dust on the small emitter lens can blur/flare the dot. Blow off dust, use a soft lens brush, then (only if needed) a tiny amount of lens cleaner on microfiber. Avoid harsh solvents; do not touch the LED.

1) Itemized Components (Product Map)

Item #	Component	What it does
1	On/Off & Brightness Buttons (top)	Power on with any button; select among 7 brightness levels; hold rear button ~4 s to power off.
2	Elevation Adjustment (top)	0.5 MOA per click; 110 MOA total travel.
3	Windage Adjustment (right)	0.5 MOA per click; 110 MOA total travel.
4	Battery Compartment (front cap)	Holds 1× AAA; insert “+” first and tighten fully.
5	Sight Window	1×, parallax-free aiming; unlimited eye relief for both-eyes-open shooting.
6	Integrated Picatinny Mount	Rail clamp built in; base screw torques to 45 in-lb.

2) Mounting (Picatinny)

Topic	Guidance
Attach	Loosen the right-side base screw, fit over the rail, set eye relief, then tighten the base screw to 45 in-lb.
Positioning	Keep light forward pressure toward the muzzle while tightening so the clamp seats against the recoil face.

3) Power, Brightness & Auto-Off

On/Off: Press any top button to turn on. Hold the rear/top button for ~4 s to power off.
Brightness: Use the forward/back buttons to select among 7 brightness settings (4 visible-daylight + 3 night-vision levels).
Auto-shutoff: After 4 hours on visible settings or 8 hours on NV settings, the sight powers off to preserve battery.

4) Battery (AAA)

Install: Open the front cap, insert the AAA with the “+” end first, and tighten the cap completely.
Storage: For extended storage, remove the battery.

5) Zeroing

Adjusters: Elevation on top; windage on right. Arrows indicate direction of impact shift.
Click value: 0.5 MOA per click; total travel 110 MOA (windage and elevation).
Use a small screwdriver; make small changes and confirm at distance.

6) Quick Specs (Reference)

Spec	Value
Clear Objective Diameter	23 mm
Dot Size / Color	2 MOA / Red
Eye Relief	Infinite (true 1×, both-eyes-open)
Click Value	0.5 MOA
Adjustment Range	Windage 110 MOA / Elevation 110 MOA
Length / Weight	2.8″ / 6.4 oz
Battery	1× AAA
Mount	Integrated Picatinny (base screw 45 in-lb)

7) Warranty

Burris will repair or replace your optic if it’s damaged or defective — no charge, no card, no receipt, and it transfers to future owners.

User Guide (PDF): FastFire RD User Guide — INSTR-9514
