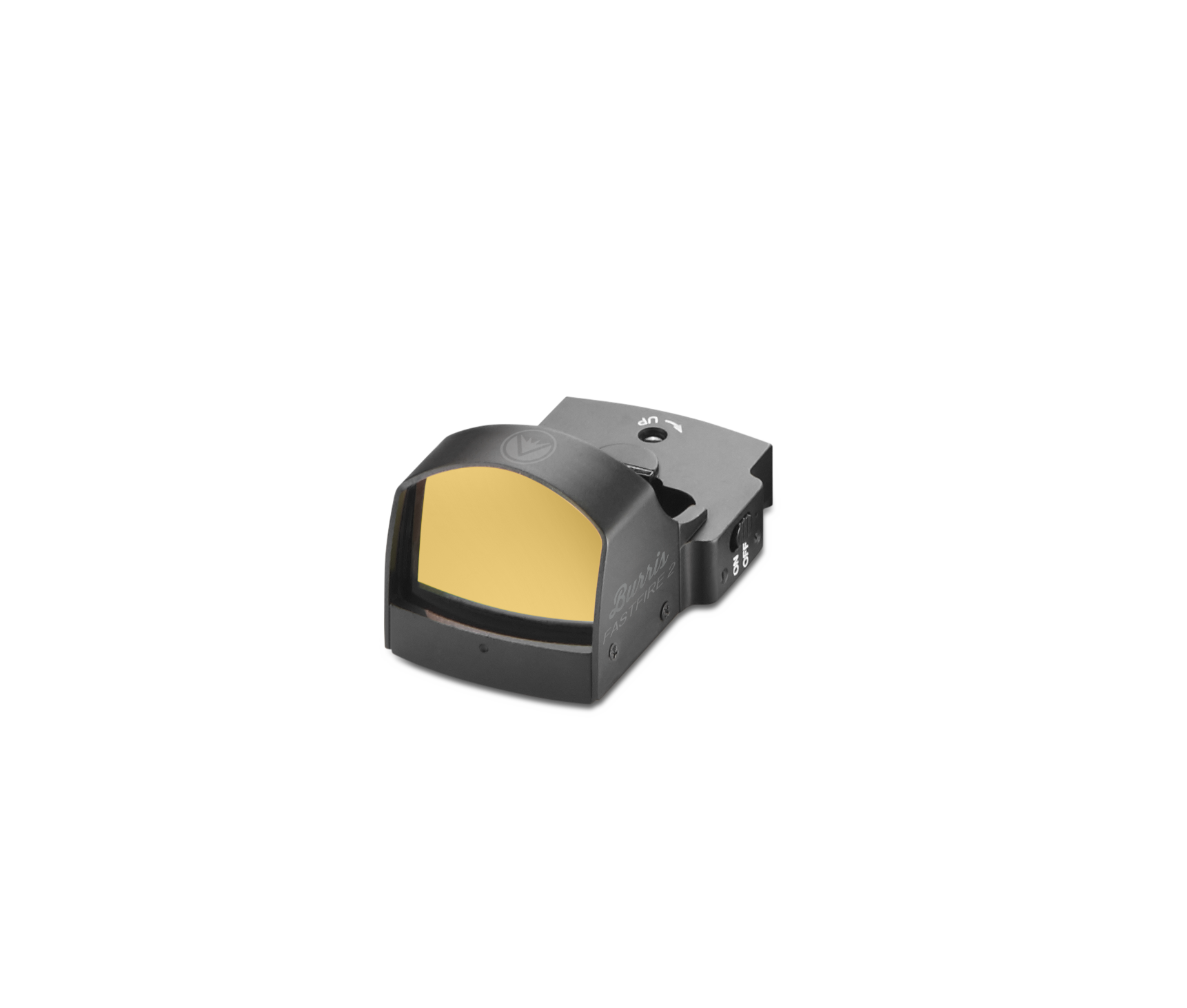

Burris FastFire® 2 — Red Dot Reflex Sight
Item #: 300232 | Item #: 300233 | Dot size: 4 MOA | Battery: 1× CR2032 (bottom-load)
Tech Notes — Astigmatism, Blurry Dots & Setup Tips
• Astigmatism: Uncorrected astigmatism or dry eyes can make the dot look like a starburst/comet. Check by viewing the dot through a phone camera (should look crisp), and/or lower brightness.
• Training (handguns): Bring the sight close to your eye to acquire the dot, then press out slowly while keeping it centered; repeat until presentation is automatic.
• Mounting gotcha: If you see a tiny emitter glow low in the field of view but no dot on the window, the sight is likely mounted backward—flip it.
• Emitter cleanliness: Smudges, oil, or dust on the small emitter lens can blur/flare the dot. Blow off dust, use a soft lens brush, then (only if needed) a tiny amount of lens cleaner on microfiber. Avoid harsh solvents; do not touch the LED. • My sight is maxed out what do I do? Get ahold of a UM Tactical shim to add more adjustment to your optic. UM Tactical
• Astigmatism: Uncorrected astigmatism or dry eyes can make the dot look like a starburst/comet. Check by viewing the dot through a phone camera (should look crisp), and/or lower brightness.
• Training (handguns): Bring the sight close to your eye to acquire the dot, then press out slowly while keeping it centered; repeat until presentation is automatic.
• Mounting gotcha: If you see a tiny emitter glow low in the field of view but no dot on the window, the sight is likely mounted backward—flip it.
• Emitter cleanliness: Smudges, oil, or dust on the small emitter lens can blur/flare the dot. Blow off dust, use a soft lens brush, then (only if needed) a tiny amount of lens cleaner on microfiber. Avoid harsh solvents; do not touch the LED. • My sight is maxed out what do I do? Get ahold of a UM Tactical shim to add more adjustment to your optic. UM Tactical
1) Itemized Components (Product Map)
| Item # | Component | What it does |
|---|---|---|
| 1 | ON/OFF Switch | Turns the sight on/off (Auto-brightness only). |
| 2 | Elevation Screw (top) | Zeroing; 1 MOA per tick mark. |
| 3 | Windage Screw (right) | Zeroing; 1 MOA per tick mark; has limit stops. |
| 4 | Sight Window / Lens | Projects the red dot (1×, parallax-free). |
| 5 | LED Emitter | Generates the 4 MOA dot (do not look directly into LED). |
| 6 | Brightness Sensor (front) | Drives automatic brightness; keep unobstructed/clean. |
| 7 | Lock Screws (rear) | Loosen ½ turn to adjust; retighten after zeroing. |
| 8 | Bottom Battery Compartment | CR2032 installs from underside; magnet seats the cell. |
2) Package Contents & Specs
| Included | Specifications |
|---|---|
| FastFire 2 sight; 2× #6-48 Torx® screws; Torx wrench; screwdriver; adjusting scale disc; protective cap; 1× CR2032 battery; gasket plate; user guide; Weaver/Picatinny-style mount. |
Magnification 1.07×; window 21×15 mm (.82″×.59″); Elevation 115 MOA; Windage 86 MOA; 1 MOA per tick (≈60 ticks/turn); Dot 4 MOA; weight ~0.9 oz; −10 °F to +130 °F operating; CR2032 power. |
3) Mounting (Plates, Orientation, Torque)
| Topic | Guidance |
|---|---|
| Plates / Bases | Many firearms need model-specific plates (e.g., 1911 Std/Adj, Glock, SIG P226, XD, Ruger Mk I–III, Sako, Marlin 336/444/1895, Win 94, S&W M&P). The Picatinny/Weaver plate is included with item 300232. |
| Picatinny / Weaver | Place gasket (metal side down) on the plate, then the sight. Install the two #6-48 screws and tighten to ~12 in-lb. Place the mount on the rail (cross-screw in slot), keep light forward pressure, and tighten the clamp nut to ~20 in-lb. |
| Orientation Check | Window faces the target. A tiny emitter glow with no dot on the glass often indicates backward mounting. |
4) Power & Brightness
- Automatic brightness: Front sensor adjusts dot intensity to lighting; keep it unobstructed/clean.
- On/Off: Use the ON/OFF switch for storage/travel to save power.
- Battery install: Insert CR2032 from the underside, “+” label visible; magnet seats the cell. Keep contacts clean (alcohol if needed). Do not stack coin cells.
5) Zeroing
- Unlock first: Loosen the two rear lock screws ~½ turn.
- Adjust: Use the scale disc/screwdriver on the “UP/LEFT” slotted screws. 1 tick = 1 MOA (~1″@100 yd; 0.5″@50 yd).
- Stops: Windage has limit stops; driving into a stop can lock the other axis—back off a few ticks to re-center. Downward stop for elevation is available only when installed on a mounting plate.
- Lock down: Retighten the lock screws before shooting (snug—don’t overtighten).
6) Environmental & Care
- Water-resistant; usable after accidental submersion. After salty/dirty water, rinse with distilled water and dry.
- Clean optics with blower/soft brush first; then lens tissue/solution if needed.
7) Quick Specs (Reference)
| Spec | Value |
|---|---|
| Magnification | 1.07× (true 1× use) |
| Window | 21 × 15 mm (.82″ × .59″) |
| Adjustment Range | Elevation 115 MOA / Windage 86 MOA |
| Adjustment Graduation | 1 MOA per tick (≈60 ticks/turn) |
| Reticle | 4 MOA red dot (auto-bright) |
| Operating / Storage Temp | −10 °F to +130 °F / −40 °F to +160 °F |
| Power Supply | 1× CR2032 (bottom-load) |
| Dimensions (L × W × H) | 1.8″ × 1.0″ × 0.9″ (46 × 25.4 × 23.7 mm) |
| Weight (optic only) | ~0.9 oz (25 g) |
| Optic Footprint | Doctor/Noblex |
User Guide (PDF): FastFire 2 User Guide — INSTR-9020
