Burris FastFire® 3 — Red Dot Reflex Sight

Dot sizes: 3 MOA or 8 MOA | Battery: 1× CR1632 (top load)

Tech Note — Astigmatism & “blurry” dots: Many shooters with uncorrected astigmatism or dry eyes will see a starburst/comet-shaped dot. This is an eye issue, not a sight defect. Quick checks: (1) Look at the dot through a phone camera—the dot should appear crisp if the optic is fine; (2) Turn the brightness down; (3) Try the 3 MOA model if you’re sensitive to bloom.
Training tip to “find the dot” (handguns): bring the sight close to your eye to visually acquire the dot, then press out slowly while keeping the dot centered; repeat until presentation becomes automatic.
Mounting gotcha: if you see a tiny emitter glow low in the field of view (and not a dot on the window), the sight is likely mounted backwards—flip it around. Also check the emitter: A smudge, oil, or dust on the small emitter lens can make the dot look blurry or irregular. Clean gently with a blower first, then a soft lens brush, and only if needed a single drop of lens cleaner on a microfiber. Avoid harsh solvents and don’t touch the LED.

1) Itemized Components (Product Map)

Item #	Component	What it does
1	Power / Brightness Button (left)	Cycles Auto → High → Medium → Low → Off.
2	Elevation Screw (top)	Zeroing; 1 tick = 1 MOA.
3	Windage Screw (right)	Zeroing; 1 tick = 1 MOA (stops at ends).
4	Sight Window / Lens	Projects the aiming dot (parallax-free, 1×).
5	LED Emitter	Generates the red dot (do not look directly into the LED).
6	Brightness Sensor (front)	Reads ambient light in Auto mode; keep clear.
7	Top Battery Cap	Holds 1× CR1632 (positive up).

Manual diagram labels and control locations.

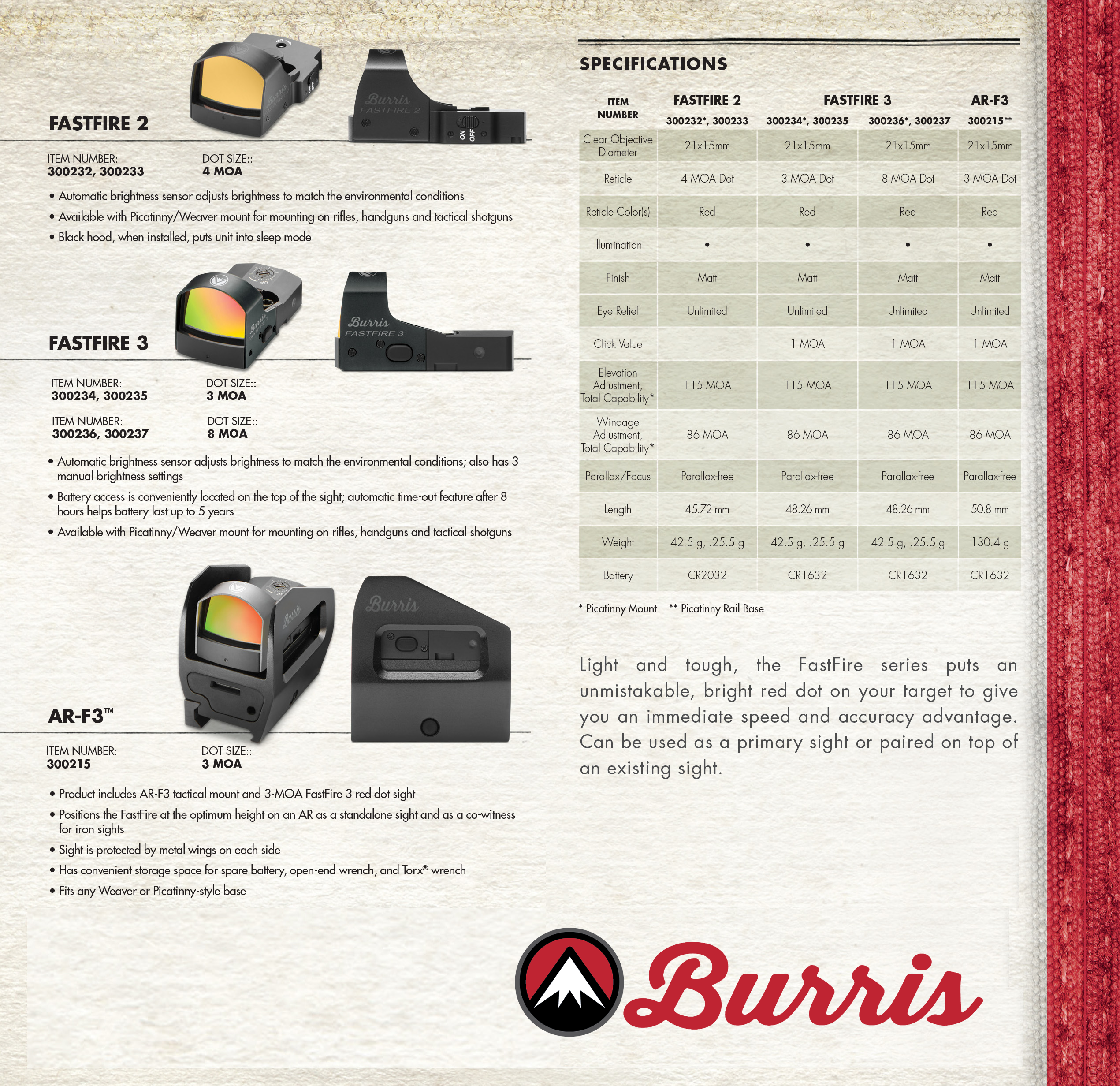

2) Package Contents & Specs

Included	Specifications
FastFire 3 sight, 2× #6-48 Torx® screws, Torx wrench, protective cover, 1× CR1632 battery, user guide; some models include a Weaver/Picatinny mount.	1.07× mag; window 21×15 mm (.82×.59″); Elevation range 115 MOA; Windage 86 MOA; 1 MOA per tick; Dot: 3 MOA or 8 MOA; ~0.9 oz; −10 °F to 130 °F operating; CR1632 power.

Pulled from “Package Contents” and “Specifications.”

3) Mounting (Plates, Orientation, Torque)

Topic	Guidance
Plates / Bases	FastFire 3 fits many pistols/rifles via model-specific plates (Glock, 1911, S&W M&P, SIG P226, XD, Beretta, Ruger, etc.) and includes a Weaver/Picatinny plate on select models; see the mount list in the manual.
Picatinny / Weaver	Place cross-screw in a slot, ensure clamp edges fully engage, apply light forward pressure toward the muzzle, then tighten the clamp nut to ~20 in-lb.
AR-F3 Mount	Seat mount on rail and tighten the nut to 20 in-lb; then fasten the sight to the mount with the Torx® screws at 12 in-lb.
Orientation Check	The window faces the target. If you only see a tiny glow from the emitter low in the view and no dot on the glass, the optic is likely mounted backward.

4) Power & Brightness

Modes: Auto (sensor-controlled), High, Medium, Low, then Off (tap the left button to cycle).
Low battery signal: Dot blinks twice every ~5 s when ≲4 hours of power remain.
Auto note: The front sensor reads target-side light; keep it unobstructed for best Auto performance.
Battery install: Top-load CR1632, positive side up; do not substitute stacked cells. Don’t overtighten the cap.

5) Zeroing

Adjusters: Elevation on top; windage on right. 1 tick = 1 MOA (~1″ @ 100 yd; ~0.5″ @ 50 yd). Use a small coin/flat tool.
End-stop behavior: Windage has limit stops; running into a stop also locks the other axis. Back off a few ticks to re-center.

6) Environmental & Care

Water-resistant; survives rain/snow and accidental submersion. Rinse salt/dirt with distilled water and dry.
Clean lenses with blower/soft brush first; then lens tissue/solution.
Emitter lens cleaning: With the sight off, inspect the small emitter lens. Blow off dust, use a soft lens brush, then (only if needed) a tiny amount of lens cleaner on microfiber. Avoid harsh solvents and do not touch the LED itself.

7) Quick Specs (Reference)

Spec	Value
Magnification	1.07× (true 1× use)
Window	21 × 15 mm (.82″ × .59″)
Adjustment Range	Elev 115 MOA / Wind 86 MOA; 1 MOA per tick
Dot Size (models)	3 MOA or 8 MOA
Weight	~0.9 oz (sight only)
Operating Temp	−10 °F to +130 °F
Battery	1× CR1632 (top load)

All specifications per manual.

User Guide (PDF): FastFire 3 User Guide
