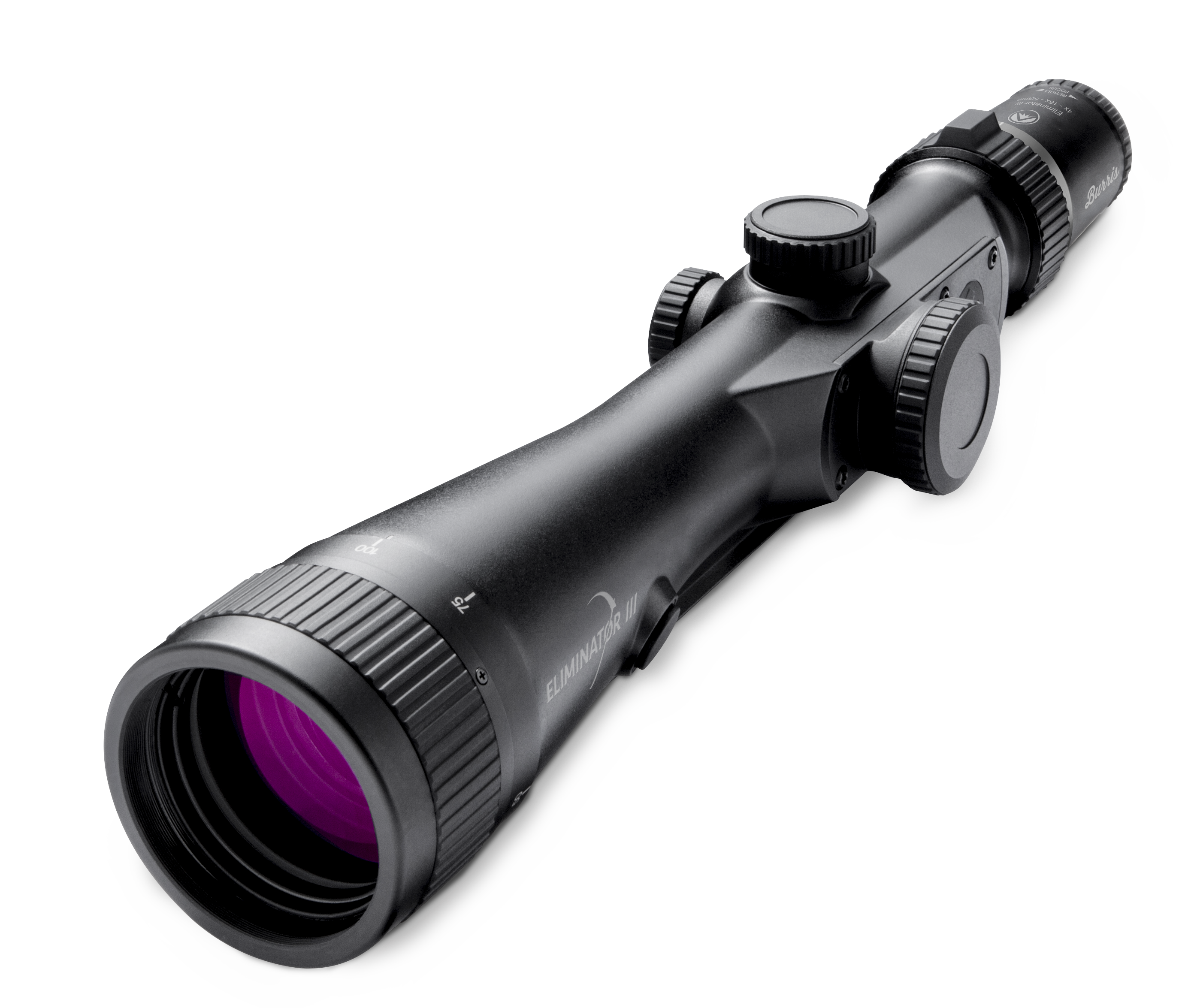

Burris Eliminator® III — LaserScope

Series: Eliminator III LaserScope #Item: 200116 #Item: 200119 #Item: 200120

1) Physical Components

Item #	Component	What it does
1	On/Range Button (Left)	Powers electronics / ranges target; displays range, wind value, and holdover dot.
2	On/Range Button (Right)	Duplicate control for ambidextrous use.
3	Forward Button	Advance/confirm in setup menus.
4	Up Button	Increase values / raise brightness.
5	Down Button	Decrease values / lower brightness.
6	Battery Cover (CR123)	Houses the CR123 battery; quick setup sticker inside cap.
7	Parallax/Focus Ring (Objective)	Parallax & focus adjustment on the objective bell.
8	Elevation Knob	Zeroing adjustment (1/8 MOA clicks).
9	Windage Knob	Zeroing adjustment (1/8 MOA clicks).
10	Objective Lens	Primary light-gathering lens.
11	Eyepiece & Diopter	Focuses reticle to the eye.
12	Integrated Mount Clamps & Hex Nuts	Clamp onto cross-slot base; tighten to spec.

Step	Detail
Base type	Use a Weaver-style or Picatinny-style cross-slot base. Burris Xtreme Tactical Bases are recommended for Eliminator III.
Surface prep	Degrease receiver and bases (especially screw holes) and allow to dry. Avoid contact with stock or lenses.
Eye relief	Shoulder the rifle; set the scope as far forward as possible while maintaining a full field of view.
Clamp placement	With mount clamps open, place the mount bolts into two base slots. Set the scope onto the bolts, rock gently side-to-side until scope rail sits flush. Clamps must grip the base lip and the scope’s underside rail.
Set & torque	Push the scope forward to seat against recoil, then tighten both hex nuts to 50–70 in-lb. Finger-tighten first; then torque evenly.
MOA Bases	We recommend 0 MOA bases with all of our Eliminator scopes. Canted bases are not recommended.

Courtesy of Beretta Australia.

Parallax/Focus: Rotate the objective parallax ring until head movement doesn’t shift the reticle on target.
Zero: Start at 25 yd, then 100 yd (centerfire) or 50 yd (rimfire/slug/muzzleloader/300 BLK sub). Clicks are 1/8 MOA at 100 yd (32 clicks = 1″ at 25 yd). Re-index the capped turrets to “0” after zeroing.

User Guide (PDF): Eliminator III User Guide
